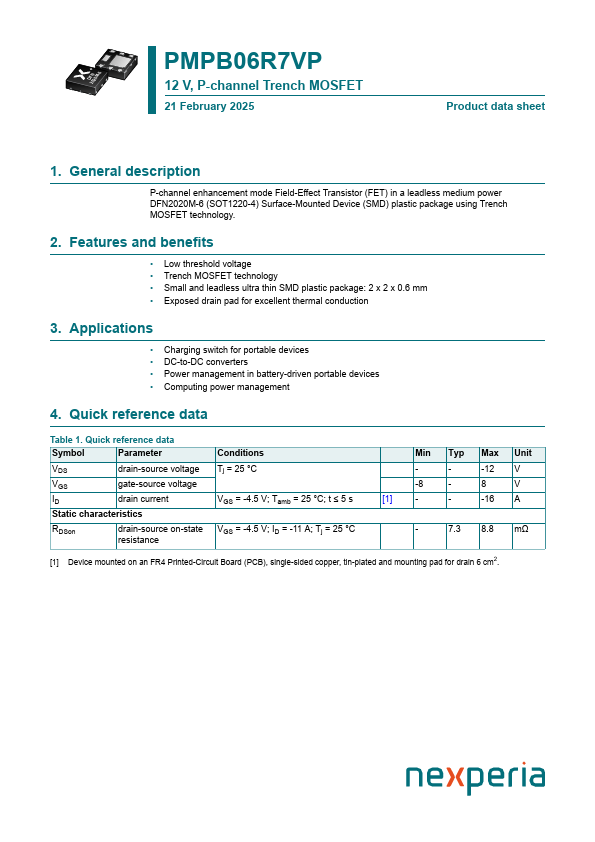

PMPB06R7VP
description
P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020M-6 (SOT1220-4) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
2. Features and benefits
- Low threshold voltage
- Trench MOSFET technology
- Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.6 mm
- Exposed drain pad for excellent thermal conduction
3. Applications
- Charging switch for portable devices
- DC-to-DC converters
- Power management in battery-driven portable devices
- puting power management
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VDS drain-source voltage
VGS gate-source voltage
ID drain current
Static characteristics
RDSon drain-source on-state resistance
Conditions Tj = 25 °C
VGS = -4.5 V; Tamb = 25 °C; t ≤ 5 s
VGS = -4.5 V; ID = -11 A; Tj = 25 °C
Min Typ Max
- -
-12
-8
- 8
[1]
- -
-16
- 7.3 8.8
[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided...
