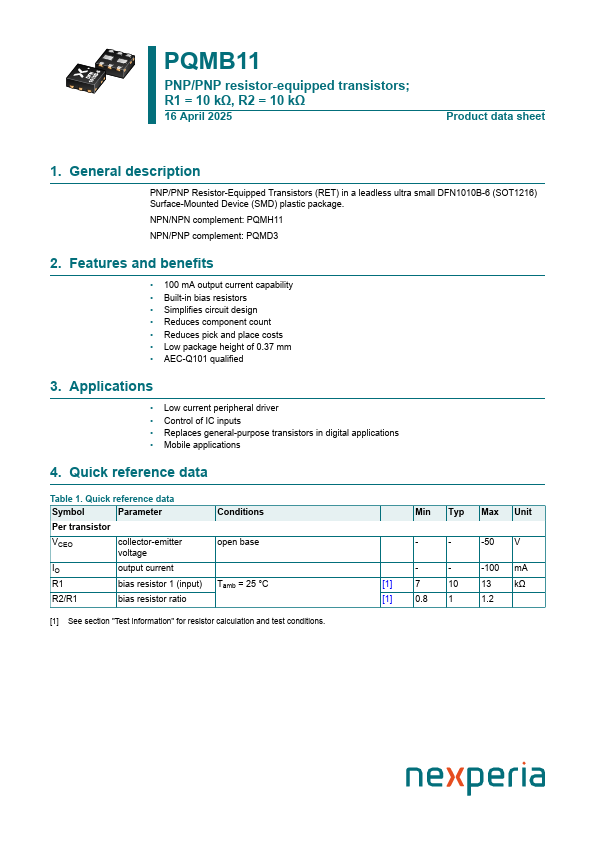

PQMB11 Datasheet, Transistors, nexperia

PQMB11 Features

• Transistors
• 100 mA output current capability
• Built-in bias resistors
• Simplifies circuit design
• Low package height of 0.37 mm
• Reduces component coun

PDF File Details

Part number:

PQMB11

Manufacturer:

nexperia ↗

File Size:

694.44kb

Download:

📄 Datasheet

Description:

Pnp/pnp resistor-equipped transistors. PNP/PNP Resistor-Equipped Transistors (RET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic packa

PQMB11 Application

• Applications
• Low current peripheral driver
• Control of IC inputs
• Replaces general-purpose transistors in digital applic
