PTVS24VZ1UPD Transient Voltage Suppressor

nexperia

PTVS24VZ1UPD Description

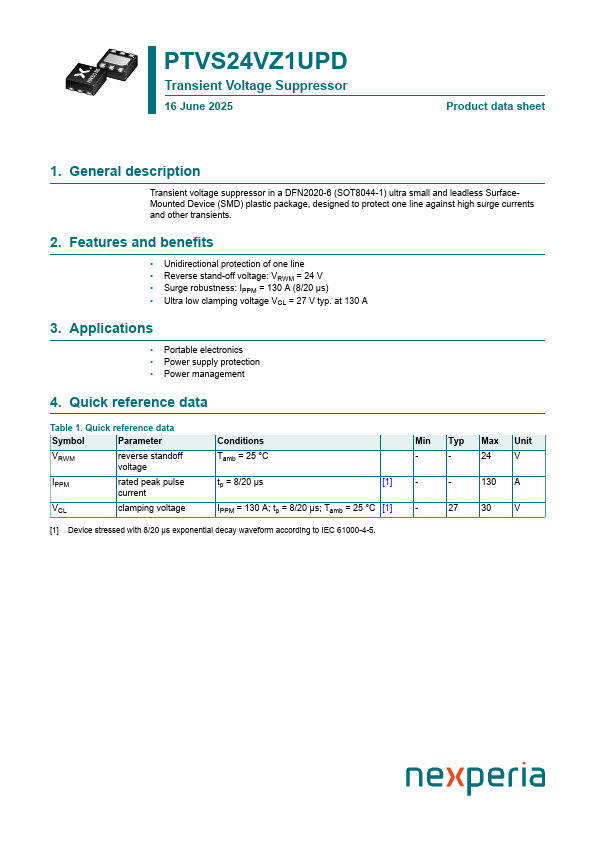

HWSON6 PTVS24VZ1UPD Transient Voltage Suppressor 16 June 2025 Product data sheet 1.General .
Transient voltage suppressor in a DFN2020-6 (SOT8044-1) ultra small and leadless SurfaceMounted Device (SMD) plastic package, designed to protect one.

PTVS24VZ1UPD Features

* Unidirectional protection of one line
* Reverse stand-off voltage: VRWM = 24 V
* Surge robustness: IPPM = 130 A (8/20 µs)

PTVS24VZ1UPD Applications

* Portable electronics
* Power supply protection
* Power management 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage IPPM rated peak pulse current VCL clamping voltage Conditions Tamb = 25 °C tp = 8/20 µs [1]

📥 Download Datasheet

PTVS24VZ1UPD Datasheet Preview — Preview of PTVS24VZ1UPD PDF

Datasheet Details

Part number: PTVS24VZ1UPD
Manufacturer: nexperia ↗
File Size: 225.03 KB
Datasheet: PTVS24VZ1UPD-nexperia.pdf
Description: Transient Voltage Suppressor
