PUMB18-Q 50V 100mA PNP/PNP resistor-equipped transistor

PUMB18-Q Description

PUMB18-Q 50 V, 100 mA PNP/PNP resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 10 kΩ 1 October 2025 Product data sheet 1.General .
PNP/PNP double Resistor-Equipped Transistor (RET) in a very small SOT363 (SC-88) SurfaceMounted Device (SMD) plastic package.

PUMB18-Q Features

* 100 mA output current capability
* Built-in bias resistors
* Simplifies circuit design
* Reduces component count
* Reduces pick and place costs

PUMB18-Q Applications

* 3. Applications
* Low current peripheral driver
* Control of IC inputs
* Replaces general-purpose transistors in digital applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per transistor VCEO collector-emitter voltage IO output curre

📥 Download Datasheet

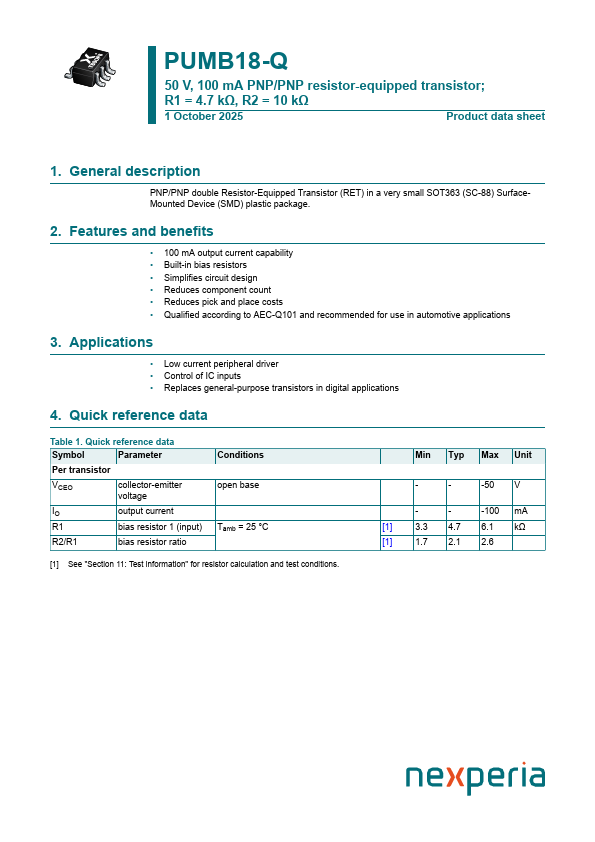

Preview of PUMB18-Q PDF

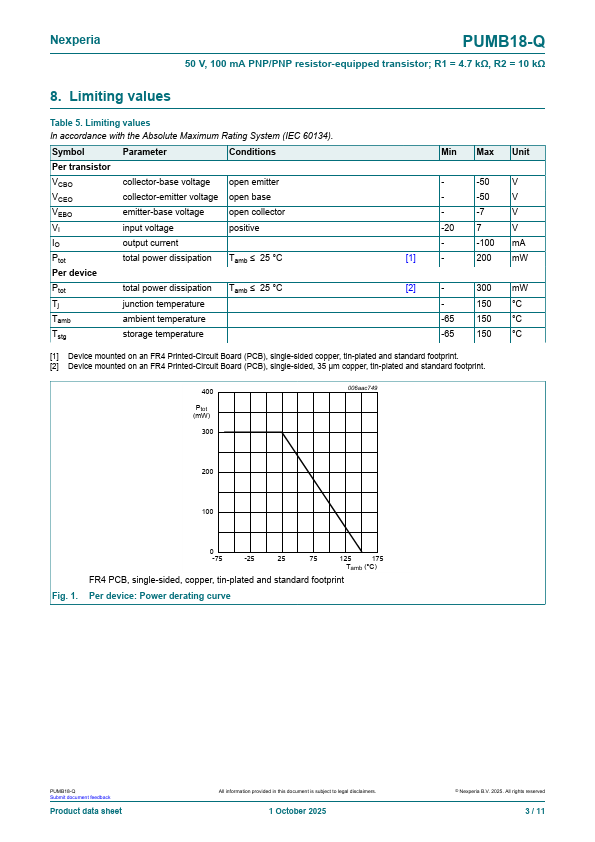

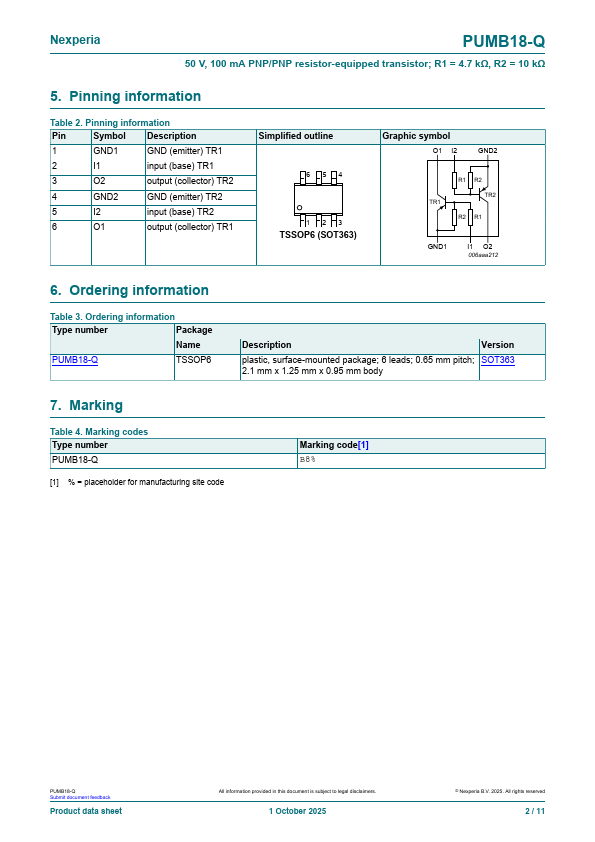

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PUMB18-Q
Manufacturer
nexperia ↗
File Size
227.95 KB
Datasheet
PUMB18-Q-nexperia.pdf
Description
50V 100mA PNP/PNP resistor-equipped transistor
