PUMD12-Q NPN/PNP resistor-equipped double transistor

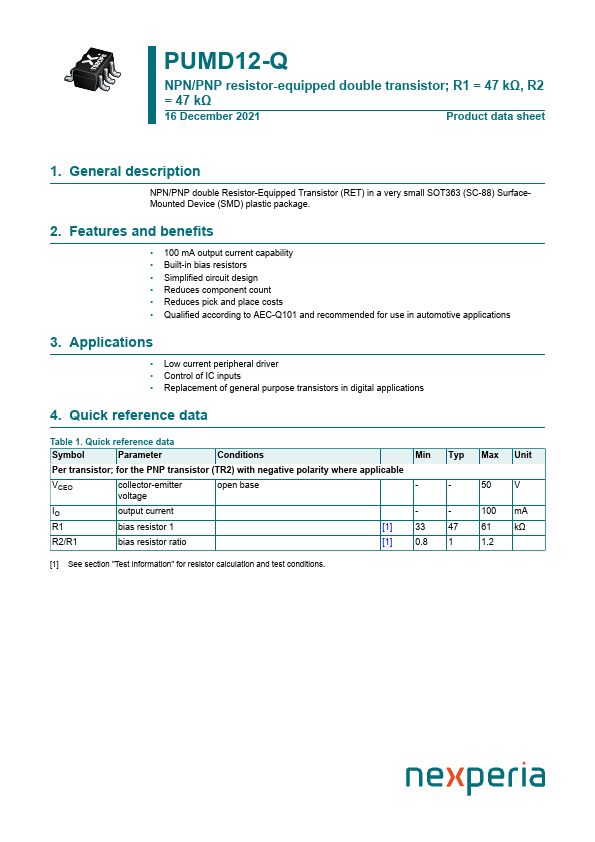

PUMD12-Q NPN/PNP resistor-equipped double transistor; R1 = 47 kΩ, R2 = 47 kΩ 16 December 2021 Product data sheet 1.General .
NPN/PNP double Resistor-Equipped Transistor (RET) in a very small SOT363 (SC-88) SurfaceMounted Device (SMD) plastic package.

PUMD12-Q-nexperia.pdf

PUMD12-Q Datasheet Preview — Preview of PUMD12-Q PDF

Datasheet Details

Part number:

PUMD12-Q

Manufacturer:

nexperia ↗

File Size:

272.63 KB

Description:

NPN/PNP resistor-equipped double transistor

Features

* 100 mA output current capability
* Built-in bias resistors
* Simplified circuit design
* Reduces component count
* Reduces pick and place costs

Applications

* 3. Applications
* Low current peripheral driver
* Control of IC inputs

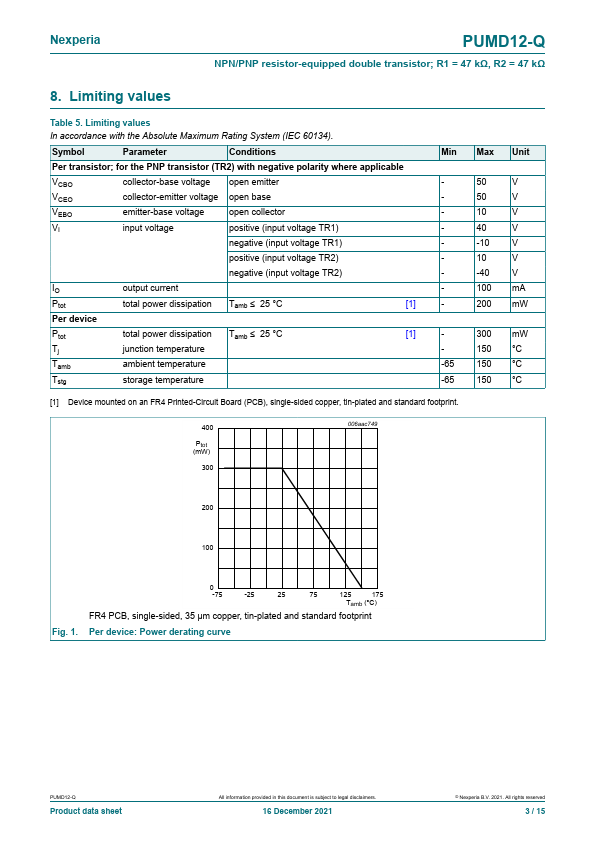

* Replacement of general purpose transistors in digital applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor; for the PNP t
