PZU4.7B-Q - Zener voltage regulator diodes

This page provides the datasheet information for the PZU4.7B-Q, a member of the PZU2.4B-Q Zener voltage regulator diodes family.

Datasheet Summary

Description

General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.

2.

Features

  • Total power dissipation: 550 mW.
  • Tolerance series: B: approximately 5 %; B2: approximately 2 %.
  • Small plastic package suitable for surface mounted design.
  • Wide working voltage range: nominal 2.4 V to 51 V.
  • Very low leakage current for a given reverse voltage for types PZU5.1B-Q - PZU10B-Q.
  • PZU5.1B2-Q - 10B-Q: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee.
  • PZU11B2-Q - 51B-Q: Intentional mi.

📥 Download Datasheet

Datasheet preview – PZU4.7B-Q

Datasheet Details

Part number PZU4.7B-Q
Manufacturer nexperia
File Size 253.33 KB
Description Zener voltage regulator diodes
Datasheet download datasheet PZU4.7B-Q Datasheet
Additional preview pages of the PZU4.7B-Q datasheet.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

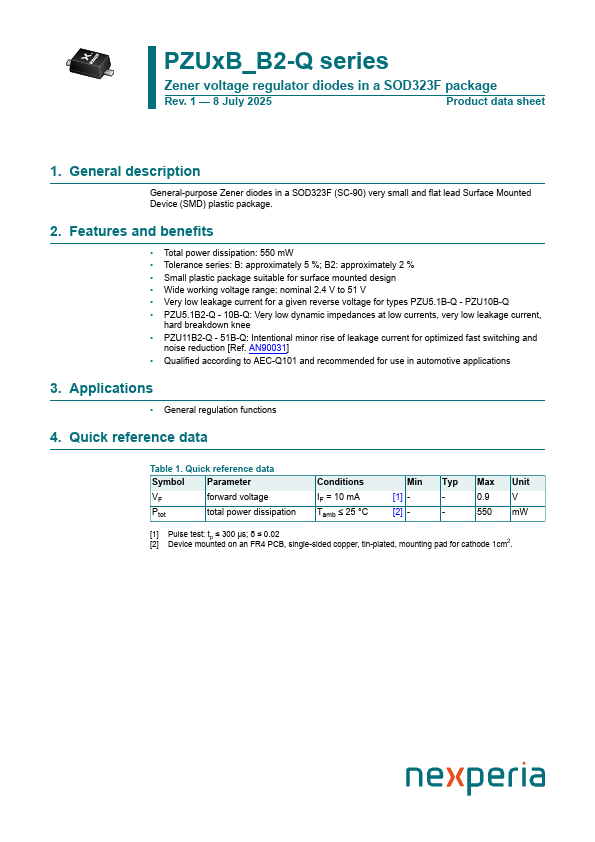

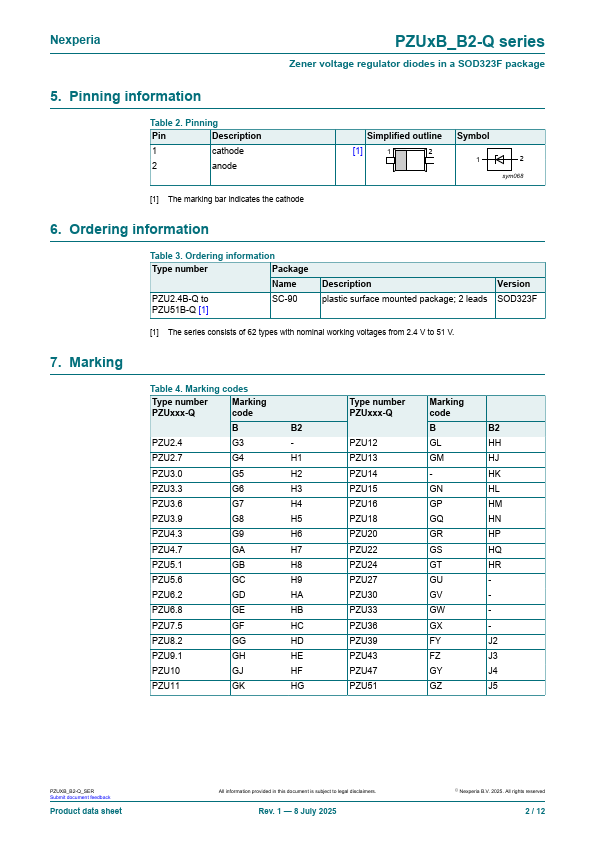

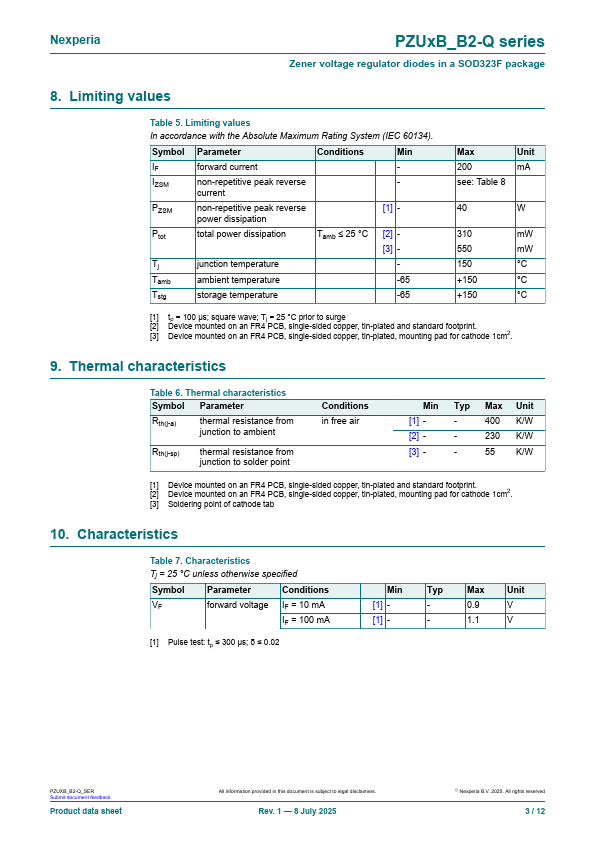

PZUxB_B2-Q series Zener voltage regulator diodes in a SOD323F package Rev. 1 — 8 July 2025 Product data sheet 1. General description General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package. 2. Features and benefits • Total power dissipation: 550 mW • Tolerance series: B: approximately 5 %; B2: approximately 2 % • Small plastic package suitable for surface mounted design • Wide working voltage range: nominal 2.4 V to 51 V • Very low leakage current for a given reverse voltage for types PZU5.1B-Q - PZU10B-Q • PZU5.
