US1J 600V 1A ultrafast recovery rectifier

📥 Download Datasheet  Datasheet Preview Page 1

Description

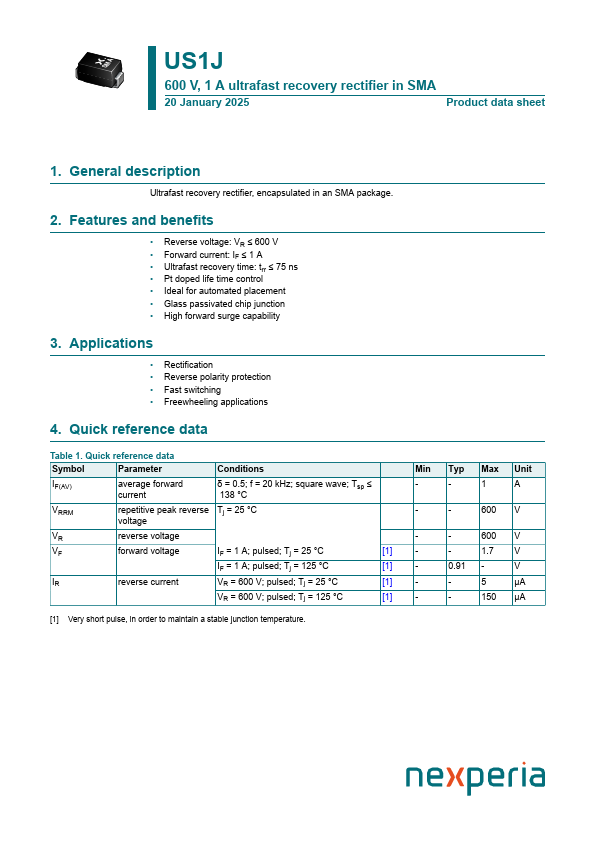

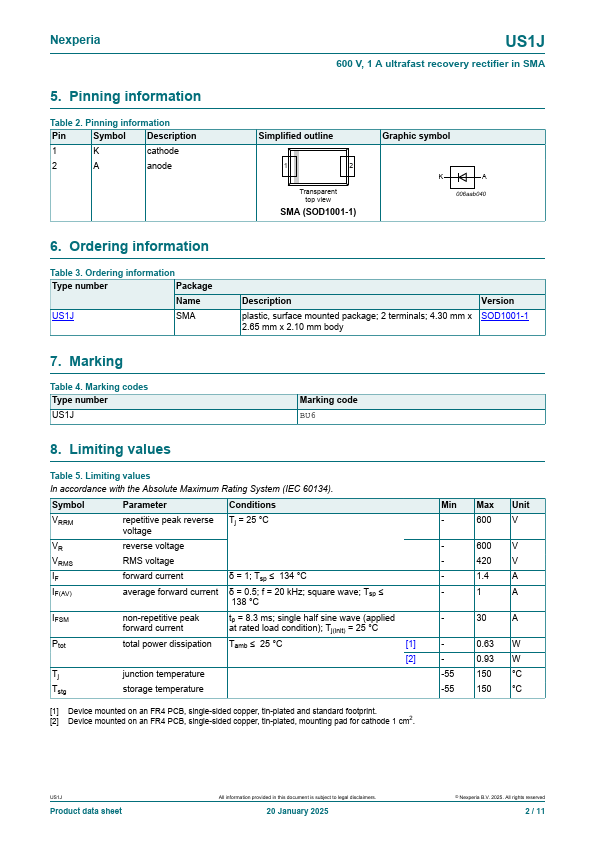

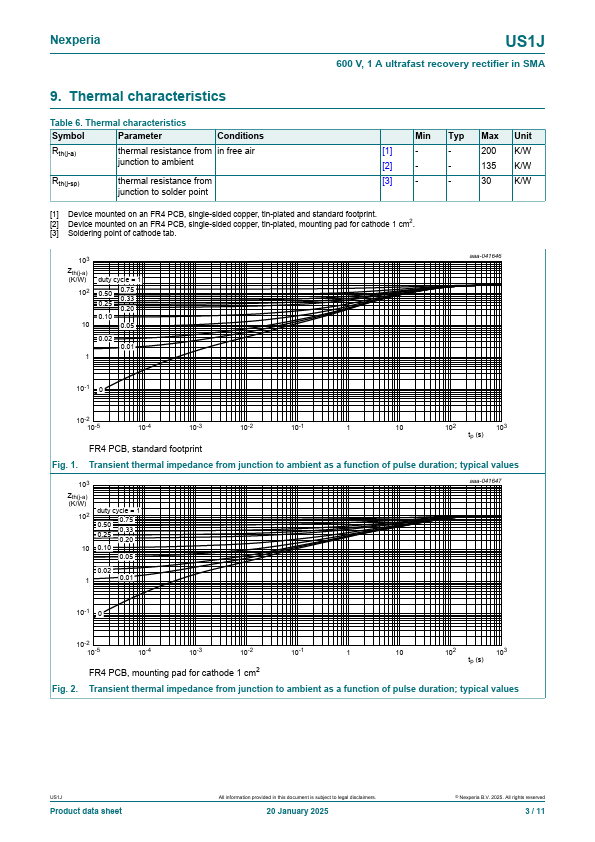

SMA US1J 600 V, 1 A ultrafast recovery rectifier in SMA 20 January 2025 Product data sheet 1.General .
Ultrafast recovery rectifier, encapsulated in an SMA package. Reverse voltage: VR ≤ 600 V. Forward curren.

📥 Download Datasheet

Preview of US1J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
US1J
Manufacturer
nexperia ↗
File Size
251.68 KB
Datasheet
US1J-nexperia.pdf
Description
600V 1A ultrafast recovery rectifier

Features

* Reverse voltage: VR ≤ 600 V
* Forward current: IF ≤ 1 A
* Ultrafast recovery time: trr ≤ 75 ns
* Pt doped life time control
* Ideal for automated placement
* Glass passivated chip junction

Applications

* Rectification
* Reverse polarity protection
* Fast switching
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 138 °C VRRM re
