US1M 1A ultrafast recovery rectifier

nexperia

Description

SMA US1M 1000 V, 1 A ultrafast recovery rectifier in SMA 20 January 2025 Product data sheet 1.General .
Ultrafast recovery rectifier, encapsulated in an SMA package. Reverse voltage: VR ≤ 1000 V. Forward curre.

📥 Download Datasheet

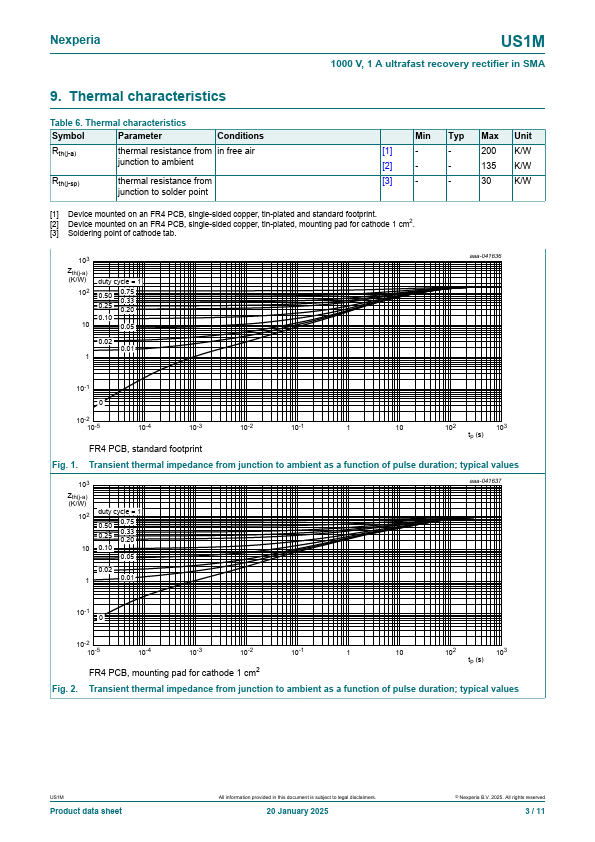

US1M Datasheet Preview — Preview of US1M PDF

Datasheet Specifications

Part number: US1M
Manufacturer: nexperia ↗
File Size: 256.43 KB
Datasheet: US1M-nexperia.pdf
Description: 1A ultrafast recovery rectifier

Features

* Reverse voltage: VR ≤ 1000 V
* Forward current: IF ≤ 1 A
* Ultrafast recovery time: trr ≤ 75 ns
* Pt doped life time control
* Ideal for automated placement
* Glass passivated chip junction

Applications

* Rectification
* Reverse polarity protection
* Fast switching
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 139 °C VRRM re
