KV4234-N2B802, KV4234-N2B801, 2-Phase Hybrid Stepping Motor

KV42 1.8 /step 42mm NEMA17 Applications OA , FA , Medical Devices Money-handling & Banking equipment 2-Phase Hybrid Stepping Motor KV42 Series FE.

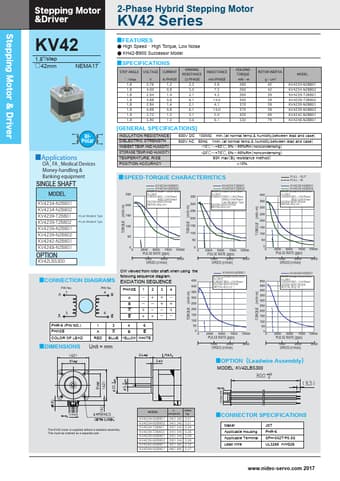

KV4234-N2B801-nidec.pdf

KV4234-N2B802 Datasheet Preview — This datasheet PDF includes multiple part numbers: KV4234-N2B802, KV4234-N2B801. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KV4234-N2B802, KV4234-N2B801

Manufacturer:

nidec

File Size:

1.18 MB

Description:

2-Phase Hybrid Stepping Motor

Note:

This datasheet PDF includes multiple part numbers: KV4234-N2B802, KV4234-N2B801.
Please refer to the document for exact specifications by model.

Features

* High Speed High Torque, Low Noise KH42-B900 Successor Model SPECIFICATIONS STEP ANGLE VOLTAGE CURRENT °/step 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 V 2.76 4.00 2.94 4.88 2.94 4.88 3.72 3.90 A/PHASE 1.2 0.8 1.4 0.8 1.4 0.8 1.2 1.3 WINDING RESISTANCE /PHASE 2.3 5.0 2.1 6.1 2.1 6.1 3.1 3.0 INDUCTANCE m
