KV4239-T2U801, KV4234-N2U801 Datasheet - nidec

KV4239-T2U801 2-Phase Hybrid Stepping Motor

KV4239-T2U801 Features

* High Speed High Torque, Low Noise KH42-B900 Successor Model SPECIFICATIONS STEP ANGLE VOLTAGE CURRENT °/step 1.8 1.8 1.8 1.8 1.8 V 2.97 3.36 3.36 3.54 4.08 A/PHASE 1.10 1.20 1.2 1.2 1.2 WINDING RESISTANCE /PHASE 2.7 2.8 2.8 3.0 3.4 INDUCTANCE mH/PHASE 2.1 3.2 2.9 3.2 3.7 HOLDING TORQUE mNm 2

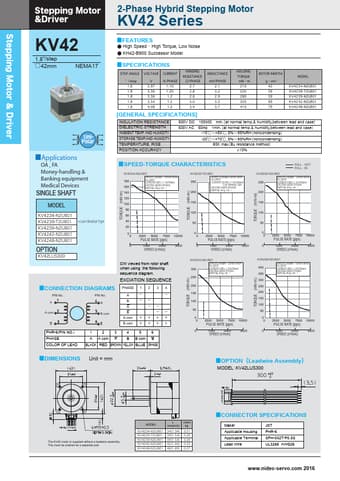

KV4234-N2U801-nidec.pdf

KV4239-T2U801 Datasheet Preview — This datasheet PDF includes multiple part numbers: KV4239-T2U801, KV4234-N2U801. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KV4239-T2U801, KV4234-N2U801

Manufacturer:

nidec

File Size:

1.14 MB

Description:

2-phase hybrid stepping motor.

Note:

This datasheet PDF includes multiple part numbers: KV4239-T2U801, KV4234-N2U801.
Please refer to the document for exact specifications by model.
