KV4239-T4B801, KV4234-N4B801 Datasheet - nidec

KV4239-T4B801 2-Phase Hybrid Stepping Motor

KV4239-T4B801 Features

* High Speed High Torque, KH42-B900 Successor Model SPECIFICATIONS STEP ANGLE VOLTAGE CURRENT °/step 4.09 4.09 4.09 4.09 4.09 V 2.52 2.94 2.94 3.22 3.78 A/PHASE 1.4 1.4 1.4 1.4 1.4 WINDING RESISTANCE /PHASE 1.8 2.1 2.1 2.3 2.7 INDUCTANCE mH/PHASE 2.7 4.2 3.8 4.5 5.0 HOLDING TORQUE mNm 200 215

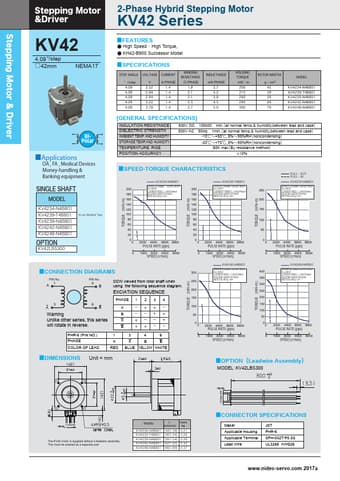

KV4234-N4B801-nidec.pdf

KV4239-T4B801 Datasheet Preview — This datasheet PDF includes multiple part numbers: KV4239-T4B801, KV4234-N4B801. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KV4239-T4B801, KV4234-N4B801

Manufacturer:

nidec

File Size:

754.49 KB

Description:

2-phase hybrid stepping motor.

Note:

This datasheet PDF includes multiple part numbers: KV4239-T4B801, KV4234-N4B801.
Please refer to the document for exact specifications by model.
