74LCX244 Low Voltage Buffer/Line Driver

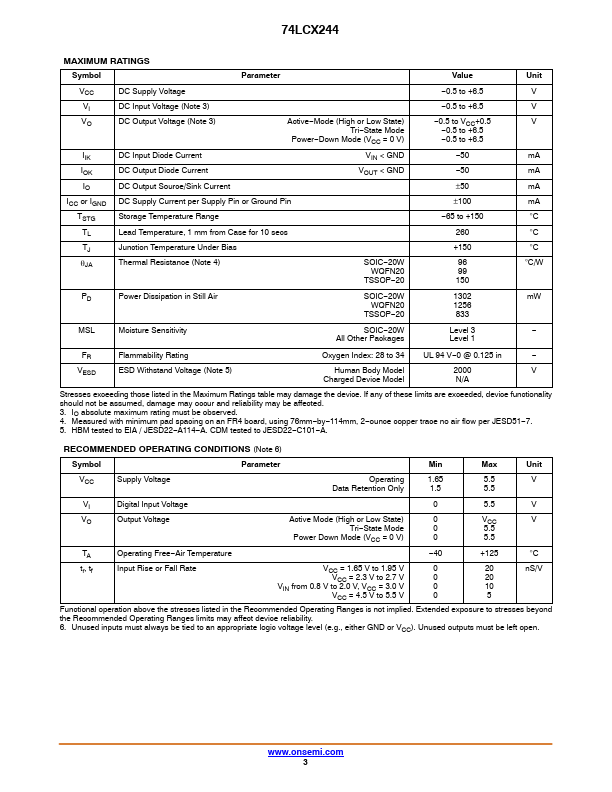

Pin Names OE1, OE2 I0 *I7 O0 *O7 DAP 2. DAP (Die Attach Pad) Description 3 *STATE Output Enable Inputs Inputs Outputs No Connect O0 O1 O2 O3 O4 O5 O6 O7 Outputs (Pins 12, 14, 16, 18) L H Z Outputs (Pins 3, 5, 7, 9) L H Z www.onsemi.com 2 74LCX244 MAXIMUM RATINGS Symbol Pa.

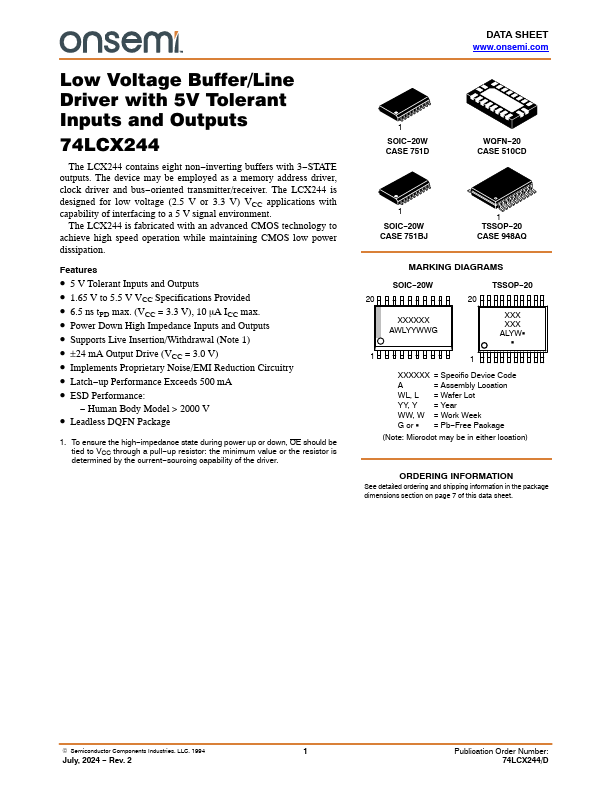

Low Voltage Buffer/Line Driver with 5V Tolerant Inputs and Outputs 74LCX244 The LCX244 contains eight non inverting buffers with 3 STATE outputs. The device may be employed as a memory address driver, clock driver and bus oriented transmitter/receiver. The LCX244 is designed for low voltage (2.5 V or 3.3 V) VCC applications with capability of interfacing to a 5 V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation .

74LCX244 Features

* 5 V Tolerant Inputs and Outputs

* 1.65 V to 5.5 V VCC Specifications Provided

* 6.5 ns tPD max. (VCC = 3.3 V), 10 mA ICC max.

* Power Down High Impedance Inputs and Outputs

* Supports Live Insertion/Withdrawal (Note 1)

* ±24 mA Output Drive (VCC = 3.
