74LS194A 4-Bit Bidirectional Universal Shift Register

📥 Download Datasheet  Datasheet Preview Page 1

Description

SN74LS194A 4-Bit Bidirectional Universal Shift Register The SN74LS194A is a High Speed 4-Bit Bidirectional Universal Shift Register.As a high speed .
The Logic Diagram and Truth Table indicate the functional characteristics of the LS194A 4-Bit Bidirectional Shift Register.

📥 Download Datasheet

Preview of 74LS194A PDF

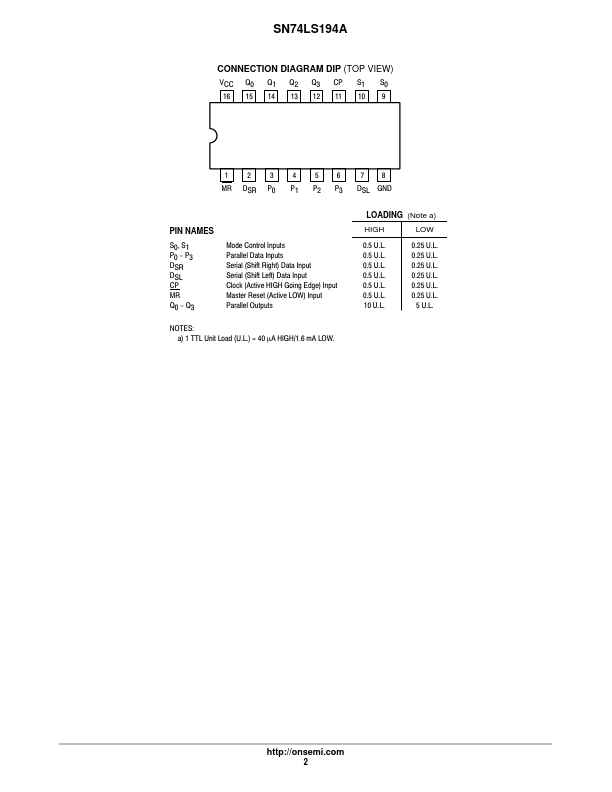

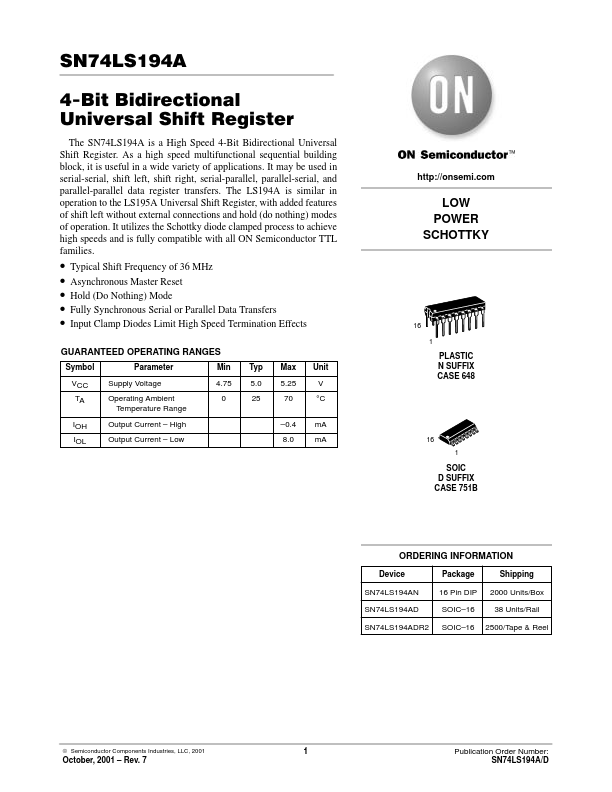

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
74LS194A
Manufacturer
onsemi
File Size
67.11 KB
Datasheet
74LS194A-onsemi.pdf
Description
4-Bit Bidirectional Universal Shift Register

Features

* of shift left without external connections and hold (do nothing) modes of operation. It utilizes the Schottky diode clamped process to achieve high speeds and is fully compatible with all ON Semiconductor TTL families.
* Typical Shift Frequency of 36 MHz
* Asynchronous Master Reset
