74LS190 PRESETTABLE BCD/DECADE UP/DOWN COUNTERS

📥 Download Datasheet  Datasheet Preview Page 1

Description

PRESETTABLE BCD/DECADE UP/DOWN COUNTERS PRESETTABLE 4-BIT BINARY UP/DOWN COUNTERS The SN54 / 74LS190 is a synchronous UP/ DOWN BCD Decade (8421) Count.
The LS190 is a synchronous Up / Down BCD Decade Counter and the LS191 is a synchronous Up / Down 4-Bit Binary Counter.

📥 Download Datasheet

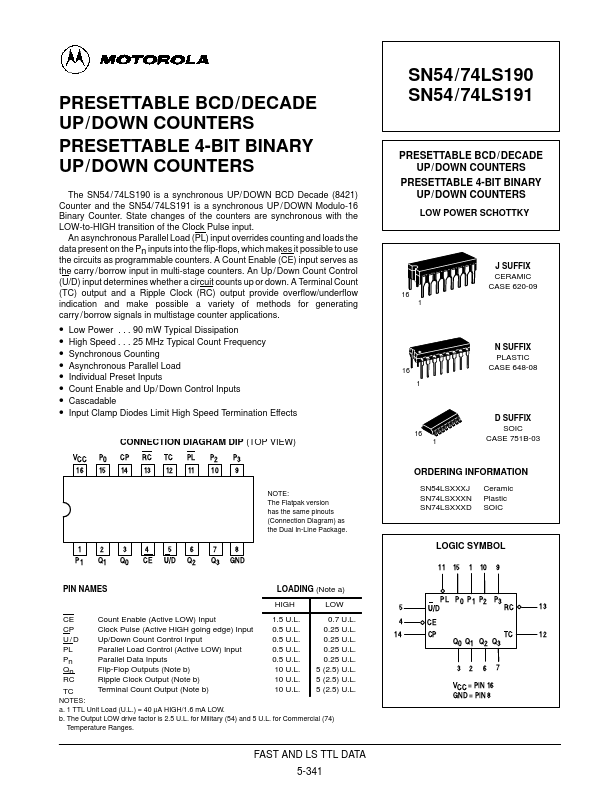

Preview of 74LS190 PDF

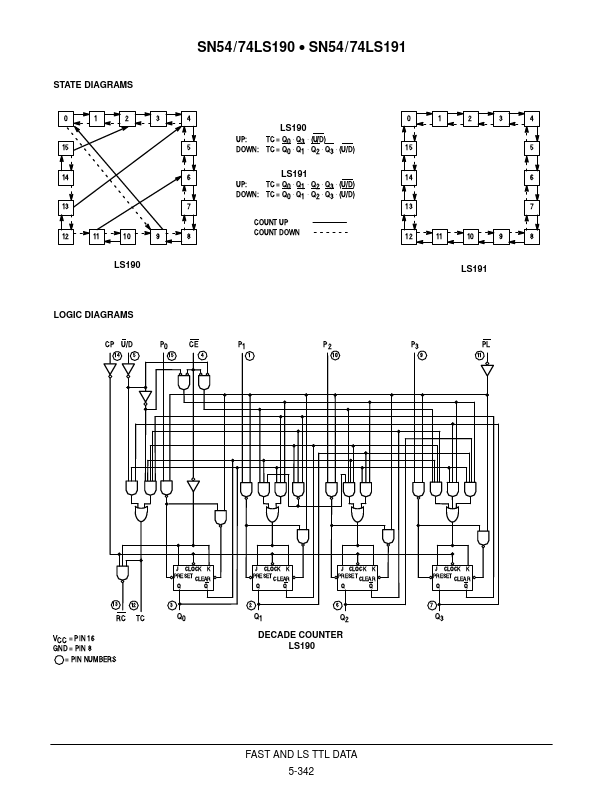

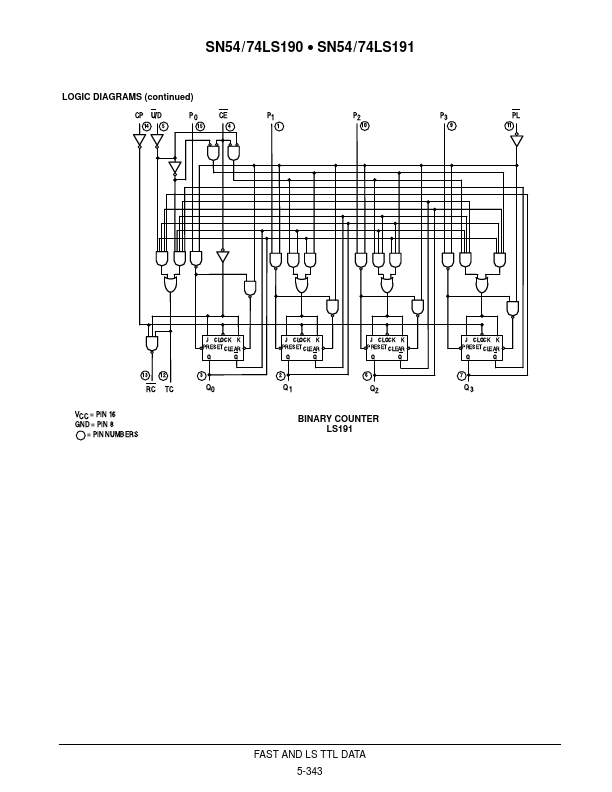

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
74LS190
Manufacturer
Motorola
File Size
308.14 KB
Datasheet
74LS190_MotorolaInc.pdf
Description
PRESETTABLE BCD/DECADE UP/DOWN COUNTERS

Applications

* Low Power . . . 90 mW Typical Dissipation
* High Speed . . . 25 MHz Typical Count Frequency
* Synchronous Counting
* Asynchronous Parallel Load
* Individual Preset Inputs
* Count Enable and Up/ Down Control Inputs
* Cascadable
* Inpu
