74LS112A, 74LS112 DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP

74LS112A Description

DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP The SN54 / 74LS112A dual JK flip-flop .

74LS112A Features

* individual J, K, clock, and asynchronous set and clear inputs to each flip-flop. When the clock goes HIGH, the inputs are enabled and data will be accepted. The logic level of the J and K inputs may be allowed to change when the clock pulse is HIGH and the bistable will perform according to the trut

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 74LS112A, 74LS112. Please refer to the document for exact specifications by model.

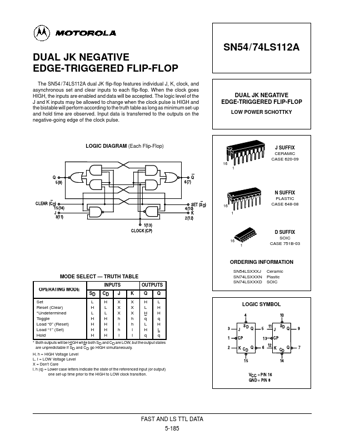

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74LS112A, 74LS112
Manufacturer
Motorola
File Size
147.34 KB
Datasheet
74LS112_MotorolaInc.pdf
Description
DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP
Note
This datasheet PDF includes multiple part numbers: 74LS112A, 74LS112.
Please refer to the document for exact specifications by model.
