FCA47N60 Datasheet - onsemi

N-Channel MOSFET

FCA47N60 Features

* 650 V @ TJ = 150°C

* Typ. RDS(on) = 58 mW

* Ultra Low Gate Charge (Typ. Qg = 210 nC)

* Low Effective Output Capacitance (Typ. Coss(eff.) = 420 pF)

* 100% Avalanche Tested Applications

* Solar Inverter

* AC

* DC Power Supply VDSS 600 V

FCA47N60 General Description

SUPERFET MOSFET is onsemi’s first generation of high voltage super *junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on *resistance and lower gate charge performance. This technology is tailored to minimize conduction loss, provide superior sw.

FCA47N60 Datasheet (220.97 KB)

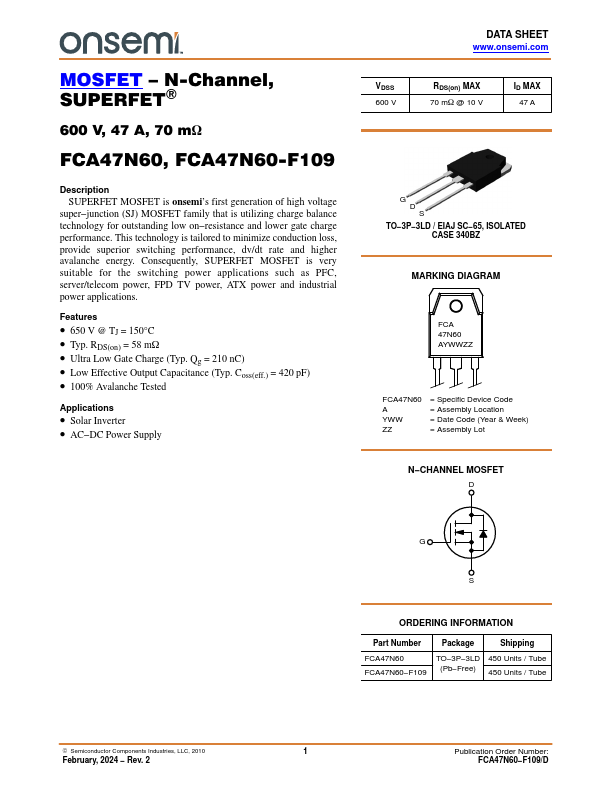

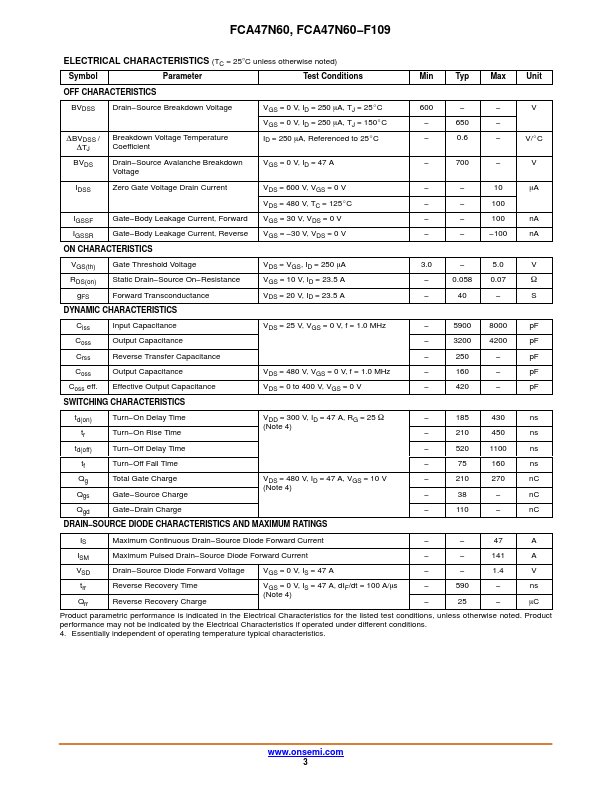

FCA47N60 Datasheet Preview — Preview of FCA47N60 PDF

Datasheet Details

Part number:

FCA47N60

Manufacturer:

onsemi

File Size:

220.97 KB

Description:

N-channel mosfet.
