FCA47N60-F109 N-Channel MOSFET

SUPERFET MOSFET is onsemi’s first generation of high voltage super *junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on *resistance and lower gate charge performance. This technology is tailored to minimize conduction loss, provide superior sw.

FCA47N60-F109 Features

* 650 V @ TJ = 150°C

* Typ. RDS(on) = 58 mW

* Ultra Low Gate Charge (Typ. Qg = 210 nC)

* Low Effective Output Capacitance (Typ. Coss(eff.) = 420 pF)

* 100% Avalanche Tested Applications

* Solar Inverter

* AC

* DC Power Supply VDSS 600 V

FCA47N60-onsemi.pdf

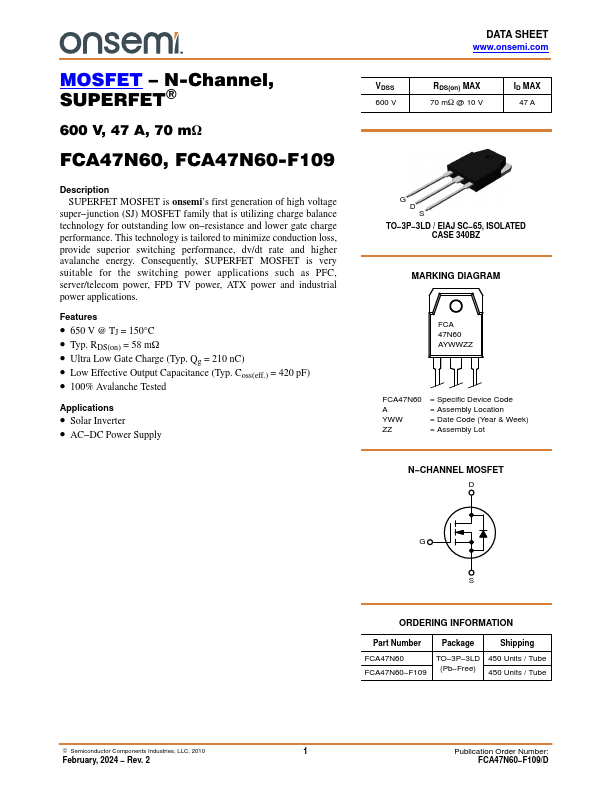

FCA47N60-F109 Datasheet Preview — This datasheet PDF includes multiple part numbers: FCA47N60-F109, FCA47N60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FCA47N60-F109, FCA47N60

Manufacturer:

onsemi

File Size:

220.97 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: FCA47N60-F109, FCA47N60.
Please refer to the document for exact specifications by model.
