NCN6001 - Compact Smart Card Interface

onsemi

NCN6001 Datasheet Preview — Preview of NCN6001 PDF

Datasheet Details

Part number	NCN6001
Manufacturer	onsemi
File Size	588.02 KB
Description	Compact Smart Card Interface
Datasheet	NCN6001-onsemi.pdf

NCN6001 Product details

Description

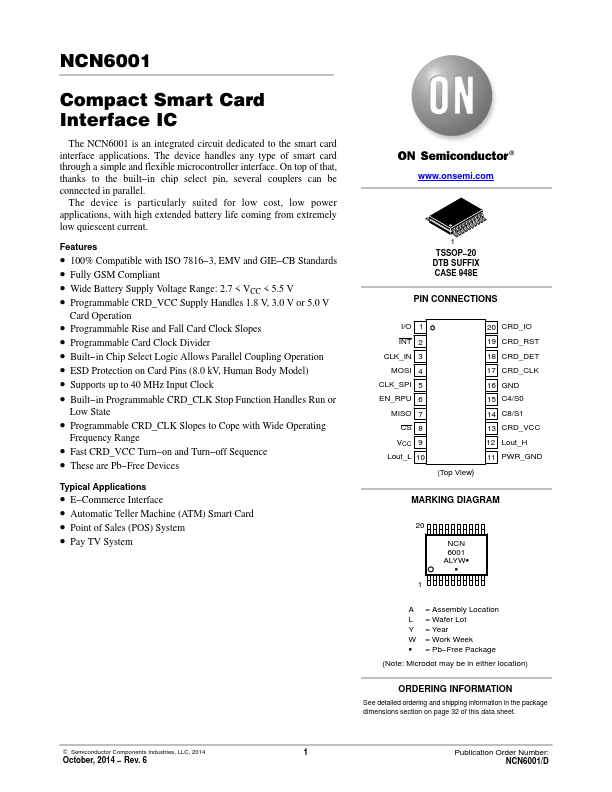

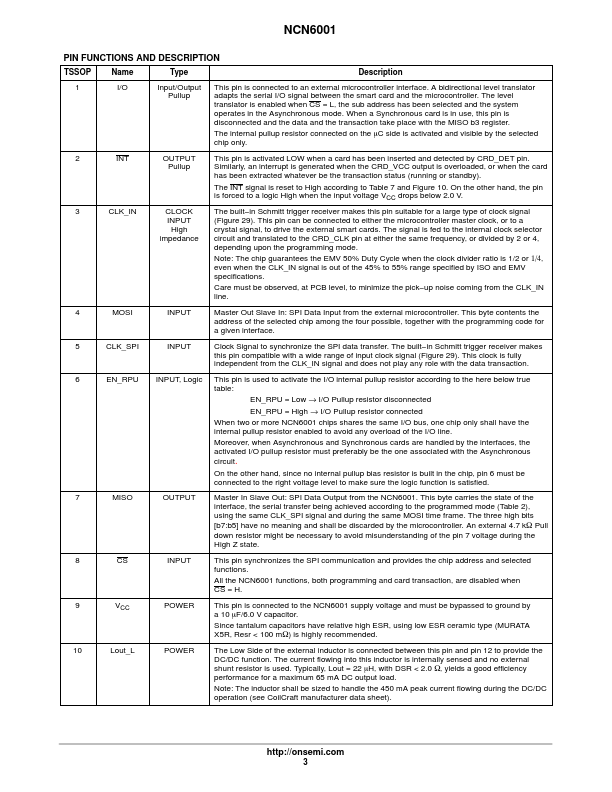

TSSOP Name Type Description 1 I/O Input/Output This pin is connected to an external microcontroller interface.A bidirectional level translator Pullup adapts the serial I/O signal between the smart card and the microcontroller.The level translator is enabled when CS = L, the sub address has been selected and the system operates in the Asynchronous mode.When a Synchronous card is in use, this pin is disconnected and the data and the transaction take place with the MISO b3 register.

Features

100% Compatible with ISO 7816.
3, EMV and GIE.
CB Standards.
Fully GSM Compliant.
Wide Battery Supply Voltage Range: 2.7 < VCC < 5.5 V.
Programmable CRD_VCC Supply Handles 1.8 V, 3.0 V or 5.0 V Card Operation.
Programmable Rise and Fall Card Clock Slopes.
Programmable Card Clock Divider.
Built.
in Chip Select Logic Allows Parallel Coupling Operation.
ESD Protection on Card Pins (8.0 kV, Human Body Model.
