NCN2500

USB Single Channel Transceiver

ON Semiconductor

NCN2500 Features

* http://onsemi.com MARKING DIAGRAM 16 1

* Compliant to the USB Specification, Version 2.0, Low and Full

* Speed Very Small Footprint Due to the QFN

* 16 Package Integrated D+/D

* Pullup Resistors Operates Over the Full 1.5 V to 3.6 V Supply

NCN2500 General Description

Pin 1 Symbol DSPD Function INPUT Description The DSPD logic level (Data Speed) activates the Low or the High speed operation on the USB port. DSPD = Low Low Speed, RPU1 and RPU2 connected to D

* DSPD = High Full Speed, RPU1 and RPU2 connected to D+ This pin interfaces the USB signals with the.

NCN2500 Datasheet (132.04 KB)

NCN2500 Datasheet Preview — Preview of NCN2500 PDF

Datasheet Details

Part number:

NCN2500

Manufacturer:

ON Semiconductor ↗

File Size:

132.04 KB

Description:

Usb single channel transceiver.

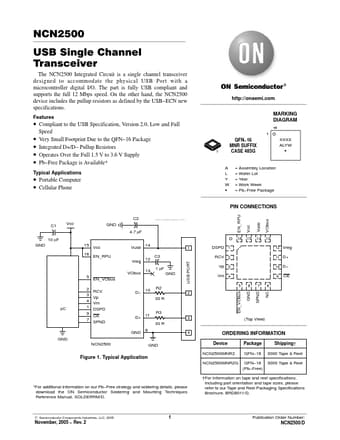

NCN2500 USB Single Channel Transceiver The NCN2500 Integrated Circuit is a single channel transceiver designed to accommodate the physical USB Port wi.
