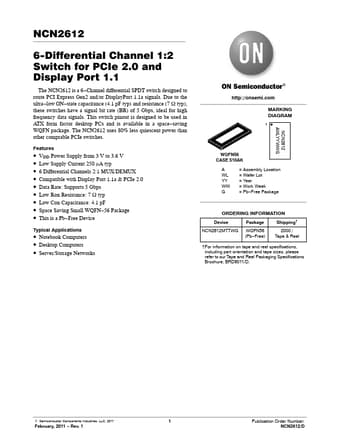

NCN2612 Datasheet, Switch, ON Semiconductor

NCN2612 Features

• Switch
• VDD Power Supply from 3 V to 3.6 V
• Low Supply Current 250 mA typ
• 6 Differential Channels 2:1 MUX/DEMUX
• Compatible with Display Port 1.1a & PCIe 2

PDF File Details

Part number:

NCN2612

Manufacturer:

ON Semiconductor ↗

File Size:

182.83kb

Download:

📄 Datasheet

Description:

6-differential channel 1:2 switch. Pin Name Description 6, 17, 22, 27, 34,50, 55 VDD DC Supply, 3.3 V $10% 1, 11, 16, 20, 21, 28, 29, 35, 48, 49, 56 GND Power

NCN2612 Application

• Applications
• Notebook Computers
• Desktop Computers
• Server/Storage Networks http://onsemi.com MARKING DIAGRAM 1 NCN261
