NCN26010

10 Mb/s Industrial Ethernet MAC + PHY IC Controller

NCN26010 Features

* 10BASE

* T1S

* IEEE 802.3cg Compliant

* 3.3 V Supply Voltage

* Two Configurable Digital Outputs that can Drive Low Current LEDs

* Low Profile 4 mm x 4 mm QFN 32

* Integrated MAC and 10BASE

* T1S PHY

* Open Alliance Compatible SPI

NCN26010 General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

NCN26010 Datasheet (441.99 KB)

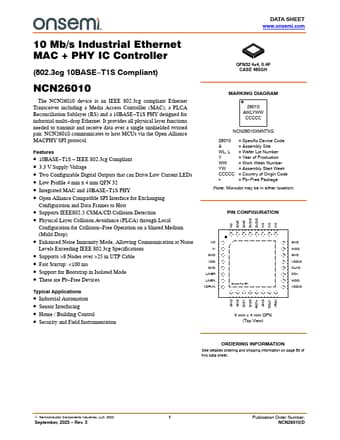

Preview of NCN26010 PDF

Datasheet Details

Part number:

NCN26010

Manufacturer:

ON Semiconductor ↗

File Size:

441.99 KB

Description:

10 mb/s industrial ethernet mac + phy ic controller.
DATA SHEET www.onsemi.com 10 Mb/s Industrial Ethernet MAC + PHY IC Controller (802.3cg 10BASE

*T1S Compliant) QFN32 4x4, 0.4P CASE 485GH NCN.
