NCN2612B 6-Channel Differential 1:2 Switch

Pin 6, 17, 22, 27, 34,50, 55 1, 11, 16, 20, 21, 28, 29, 35, 48, 49, 56 Exposed Pad 2 3 4 5 7 8 9 10 12 13 14 15 18 19 Name VDD GND DC Supply, 3.3 V $10% Power Ground. Description * SEL LE IN_0+ IN_0 * IN_1+ IN_1 * IN_2+ IN_2 * IN_3+ IN_3 * OUT+ OUT * X+ X<.

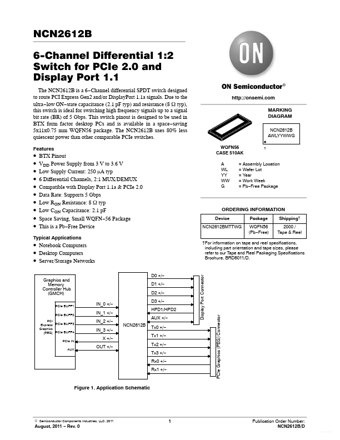

NCN2612B 6-Channel Differential 1:2 Switch for PCIe 2.0 and Display Port 1.1 The NCN2612B is a 6 Channel differential SPDT switch designed to route PCI Express Gen2 and/or DisplayPort 1.1a signals. Due to the ultra low ON state capacitance (2.1 pF typ) and resistance (8 W typ), this switch is ideal for switching high frequency signals up to a signal bit rate (BR) of 5 Gbps. This switch pinout is designed to be used in BTX form factor desktop PCs and is available in a spac.

NCN2612B Features

* http://onsemi.com MARKING DIAGRAM NCN2612B AWLYYWWG WQFN56 CASE 510AK A WL YY WW G 1

* BTX Pinout VDD Power Supply from 3 V to 3.6 V Low Supply Current: 250 mA typ 6 Differential Channels, 2:1 MUX/DEM
