NCP3296 40A Stackable Synchronous Buck Regulator

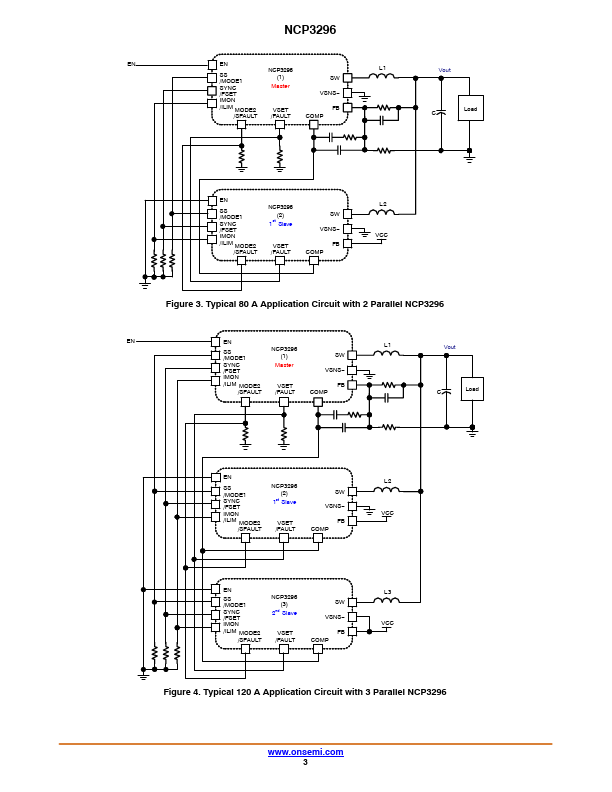

Pin Name 1~3, 34 PVIN 4 PHASE 5 BST 6 PGOOD 7, 16, 18~20, 32~33 8 GND PGND FB 9 COMP 10 VSNS * 11 SS / MODE1 12 IMON / ILIM 13 VSET / FAULT 14 MODE2 / SFAULT 15 AGND 17 SYNC / FSET 21 EN 22 VCC 23 VIN 24 25 26~31 PVCC GL SW Type Power Power Power Logic Ou.

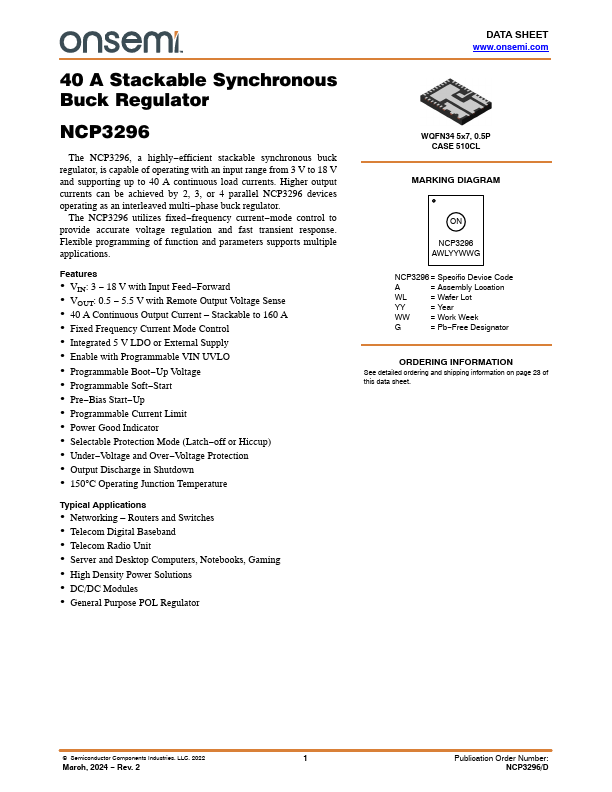

40 A Stackable Synchronous Buck Regulator NCP3296 The NCP3296, a highly efficient stackable synchronous buck regulator, is capable of operating with an input range from 3 V to 18 V and supporting up to 40 A continuous load currents. Higher output currents can be achieved by 2, 3, or 4 parallel NCP3296 devices operating as an interleaved multi phase buck regulator. The NCP3296 utilizes fixed frequency current mode control to provide accurate voltage regulation and .

NCP3296 Features

* VIN: 3

* 18 V with Input Feed

* Forward

* VOUT: 0.5

* 5.5 V with Remote Output Voltage Sense

* 40 A Continuous Output Current

* Stackable to 160 A

* Fixed Frequency Current Mode Control

* Integrated 5 V LDO or External Supply

* Enable with Prog
