NCP51752 4.5-A/9-A Isolated Single Channel Gate Driver

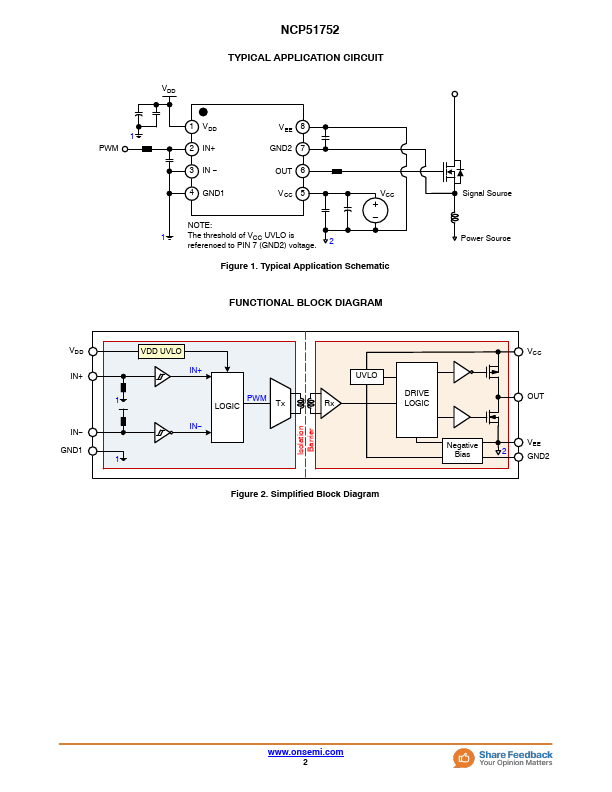

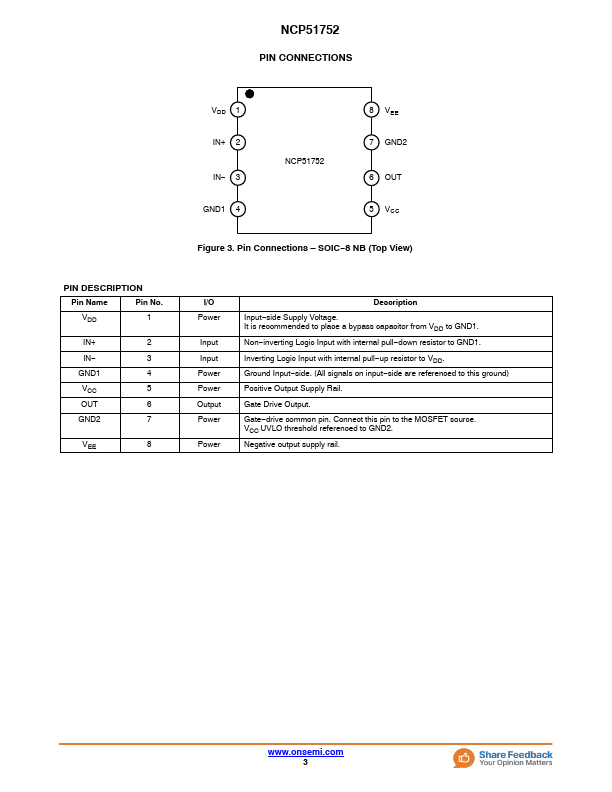

Pin Name Pin No. VDD 1 IN+ 2 IN * 3 GND1 4 VCC 5 OUT 6 GND2 7 VEE 8 I/O Power Input Input Power Power Output Power Power Description Input *side Supply Voltage. It is recommended to place a bypass capacitor from VDD to GND1. Non *inverting Logic Input with in.

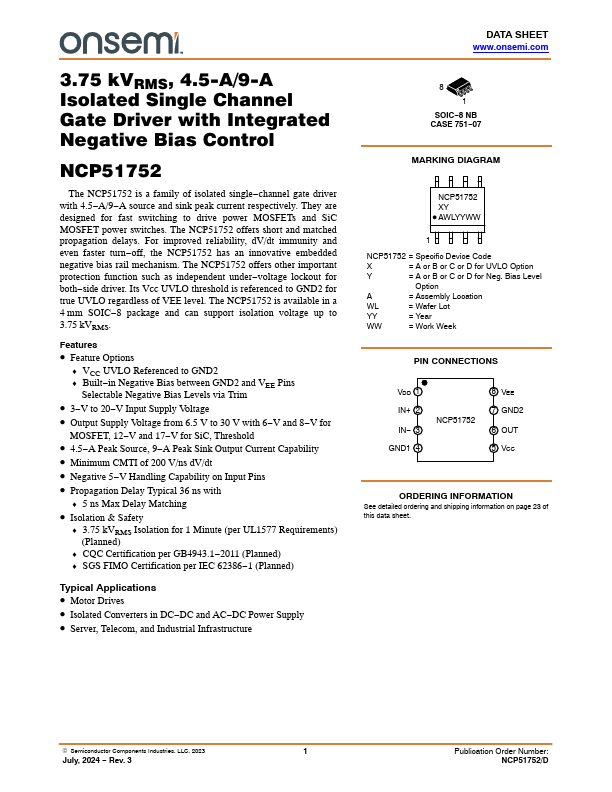

3.75 kVRMS, 4.5-A/9-A Isolated Single Channel Gate Driver with Integrated Negative Bias Control NCP51752 The NCP51752 is a family of isolated single channel gate driver with 4.5 A/9 A source and sink peak current respectively. They are designed for fast switching to drive power MOSFETs and SiC MOSFET power switches. The NCP51752 offers short and matched propagation delays. For improved reliability, dV/dt immunity and even faster turn off, the NCP51752 has an innov.

NCP51752 Features

* Feature Options

* VCC UVLO Referenced to GND2

* Built

* in Negative Bias between GND2 and VEE Pins Selectable Negative Bias Levels via Trim

* 3

* V to 20

* V Input Supply Voltage

* Output Supply Voltage from 6.5 V to 30 V with 6

* V a

NCP51752-onsemi.pdf

NCP51752 Datasheet Preview — Preview of NCP51752 PDF

Datasheet Details

Part number:

NCP51752

Manufacturer:

onsemi

File Size:

2.12 MB

Description:

4.5-a/9-a isolated single channel gate driver.
