UJ4C075044K3S - 750V SiC Cascode JFET

Description

The UJ4C075044K3S is a 750 V, 44 mW G4 SiC FET.

unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.

Features

  • On-Resistance RDS(on) : 44 mW (typ).
  • Operating Temperature: 175 C (max).
  • Excellent Reverse Recovery: Qrr = 67 nC.
  • Low Body Diode VFSD: 1.2 V.
  • Low Gate Charge: QG = 37.8nC.
  • Threshold Voltage VG(th): 4.8 V (typ) Allowing 0 to 15 V Drive.
  • Low Intrinsic Capacitance.
  • ESD Protected: HBM Class 2 and CDM Class C3.
  • This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.

📥 Download Datasheet

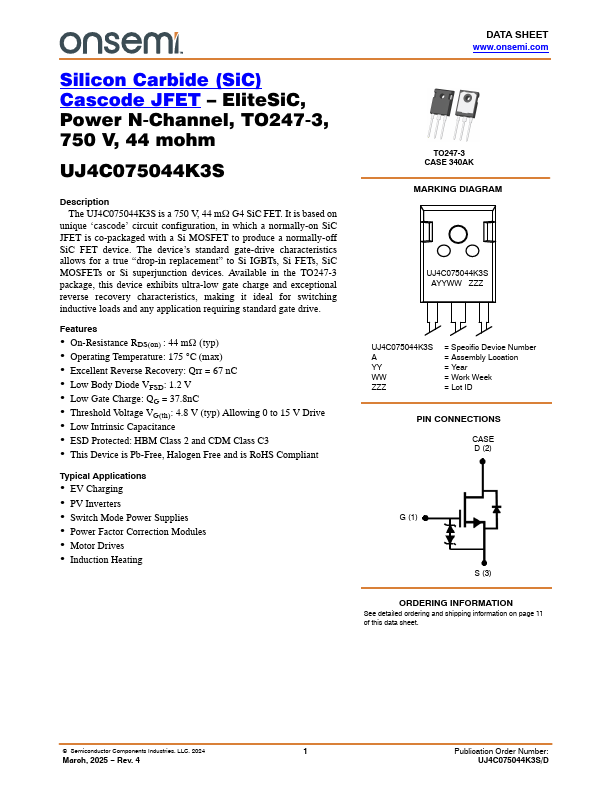

Datasheet preview – UJ4C075044K3S

Datasheet Details

Part number UJ4C075044K3S
Manufacturer onsemi
File Size 523.97 KB
Description 750V SiC Cascode JFET
Datasheet download datasheet UJ4C075044K3S Datasheet

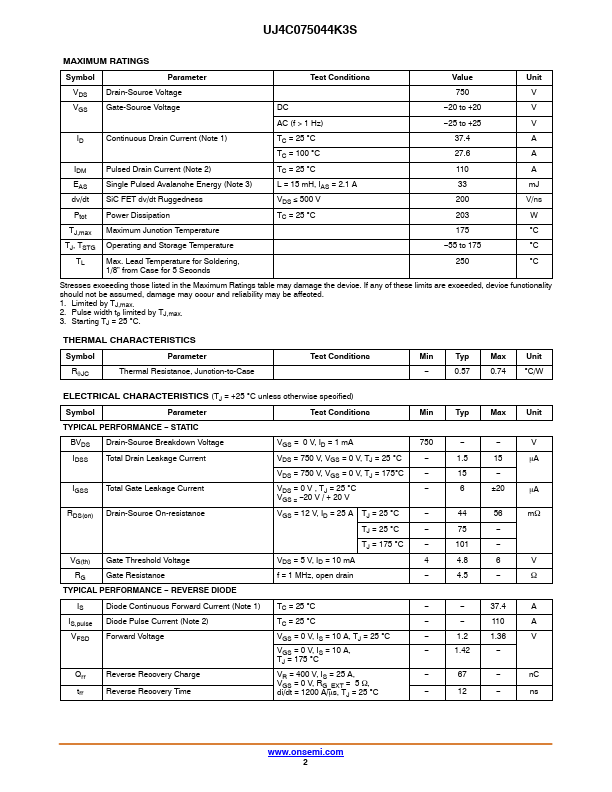

Additional preview pages of the UJ4C075044K3S datasheet.

📁 Similar Datasheet

Other Datasheets by onsemi

Full PDF Text Transcription

Click to expand full text
Silicon Carbide (SiC) Cascode JFET – EliteSiC, Power N-Channel, TO247-3, 750 V, 44 mohm UJ4C075044K3S Description The UJ4C075044K3S is a 750 V, 44 mW G4 SiC FET. It is based on unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows for a true “drop-in replacement” to Si IGBTs, Si FETs, SiC MOSFETs or Si superjunction devices. Available in the TO247-3 package, this device exhibits ultra-low gate charge and exceptional reverse recovery characteristics, making it ideal for switching inductive loads and any application requiring standard gate drive.
