104-1-B-12-1D, 104-1-A-5-1D - High Voltage SIL/SIP Reed Relays

Datasheet Details

Part number	104-1-B-12-1D, 104-1-A-5-1D
Manufacturer	pickering
File Size	412.01 KB
Description	High Voltage SIL/SIP Reed Relays

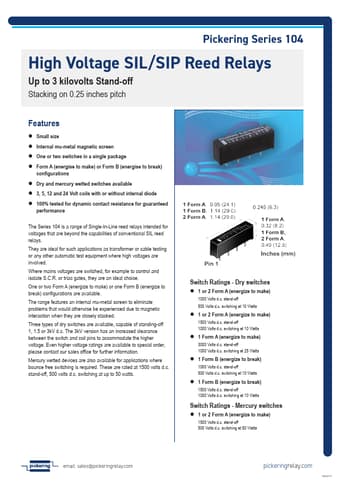

Datasheet	104-1-A-5-1D-pickering.pdf
Note	This datasheet PDF includes multiple part numbers: 104-1-B-12-1D, 104-1-A-5-1D. Please refer to the document for exact specifications by model.

zz Small size zz Internal mu-metal magnetic screen zz One or two switches in a single package zz Form A (energise to make) or Form B (energise to break) configurations zz Dry and mercury wetted switches available zz 3, 5, 12 and 24 Volt coils with or without internal diode zz 100% tested for dynamic contact resistance for guaranteed performance The Series 104 is a range of Single-In-Line reed relays intended for voltages that are beyond the capabilities of conventional SIL reed relays. They are.
