SA4301A

Polyphase Energy Metering IC

SA4301A Features

* SA4301A ICDC - a division of FEATURES 1 Meets the IEC62053, CBIP-88 and IS137799-1999 specification requirements for Class 1 AC static watthour meters for active energy 1 Motor drive outputs (MOP, MON) provide average active power information and can drive an electromechanical counter or an impul

SA4301A General Description

The SAMES SA4301A is an accurate polyphase power/energy metering integrated circuit providing a single chip solution for three phase energy meters. Very few external components are required and the chip includes a direct drive capability for electro-mechanical counters. The SA4301A does not require .

SA4301A Datasheet (498.95 KB)

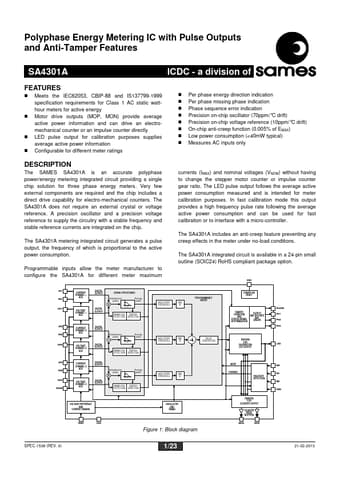

SA4301A Datasheet Preview — Preview of SA4301A PDF

Datasheet Details

Part number:

SA4301A

Manufacturer:

sames

File Size:

498.95 KB

Description:

Polyphase energy metering ic.
