UP6262

Three-Channel Voltage Console

UP6262 Features

* soft-jump, easily interfacing with standard DC/DC converter for voltage console. The uP6262 is available in space-saving SOT23-8 package. † Provide 3 Sets Current DACs

* 6% Initial Accuracy

* I2C Programmable 16-Step Sourcing Current

* I2C Programmable 64-Step Sinking Current

UP6262 General Description

The uP6262 is a high precision voltage console consisting of three sets I2C programmable current DACs. Each current DAC is capable of sinking 64-step and sourcing 16-step output current that are programmed by the I2C interface. The sinking and sourcing current of OUT1 and OUT2 are programmable for 2.

UP6262 Datasheet (754.03 KB)

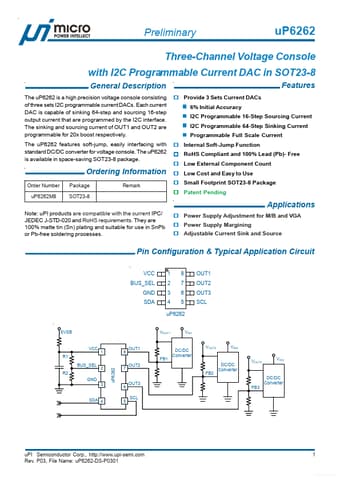

Preview of UP6262 PDF

Datasheet Details

Part number:

UP6262

Manufacturer:

uPI Semiconductor

File Size:

754.03 KB

Description:

Three-channel voltage console.
