uP6203 - Compact Dual-Phase Synchronous-Rectified Buck Controller

Product Overview

uPI Semiconductor

Datasheet Details

Part number	uP6203
Manufacturer	uPI Semiconductor
File Size	845.23 KB
Description	Compact Dual-Phase Synchronous-Rectified Buck Controller
Datasheet	uP6203 Datasheet

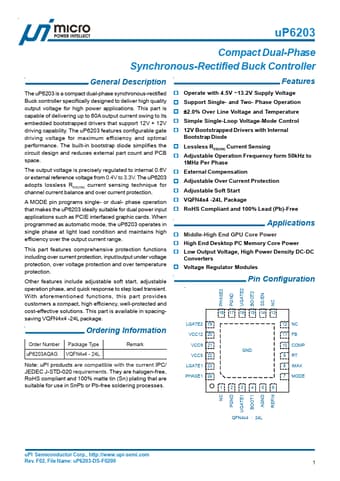

Additional preview pages of the uP6203 datasheet.

Product details

Description

The uP6203 is a compact dual-phase synchronous-rectified Buck controller specifically designed to deliver high quality output voltage for high power applications.

Features

configurable gate driving voltage for maximum efficiency and optimal performance. The built-in bootstrap diode simplifies the circuit design and reduces external part count and PCB space. The output voltage is precisely regulated to internal 0.6V or external reference voltage from 0.4V to 3.3V. The uP6203 adopts lossless RDS(ON) current sensing technique for channel current balance and over current protection. A MODE pin programs single- or dual- phase operation that makes the uP6203 ideally sui.
