WTM2302 Datasheet, Mosfet, wpmtek

WTM2302 Features

  • Mosfet
  • V DS = 20V, lD = 2.6A RDS(ON) < 80mΩ @ VGS=2.5V RDS(ON) < 56mΩ @ VGS=4.5V
  • High power and current handing capability
  • Lead free product is acquired

PDF File Details

Part number:

WTM2302

Manufacturer:

wpmtek

File Size:

797.70kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The WTM2302 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages

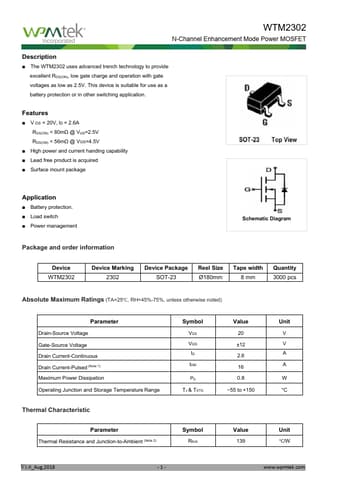

Datasheet Preview: WTM2302 📥 Download PDF (797.70kb)
Page 2 of WTM2302 Page 3 of WTM2302
