PAI161E - 200Mbps Hexa-Channel Digital Isolators

Download the PAI161E datasheet PDF. This datasheet also covers the PAI160E variant, as both devices belong to the same 200mbps hexa-channel digital isolators family and are provided as variant models within a single manufacturer datasheet.

Description

The π1xxxxx is a 2PaiSemi digital isolators product family that includes over hundreds of digital isolator products.

Features

  • Ultra low power consumption (1Mbps): 0.58mA/Channel High data rate: π16xAxx: 600Mbps π16xExx: 200Mbps π16xMxx: 10Mbps π16xUxx: 150kbps High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise Low propagation delay: 8 ns typical for 5 V operation 9 ns typical for 3.3 V operation Isolation voltages: π16xx3x: AC 3000Vrms π16xx6x: AC 6000Vrms High ESD rating: ESDA/JEDEC JS-001-2017 Human body model (HBM) ±8kV, all pins Safety and regulatory approvals (Pen.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PAI160E-2PaiSemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PAI161E
Manufacturer 2Pai Semi
File Size 1.14 MB
Description 200Mbps Hexa-Channel Digital Isolators
Datasheet download datasheet PAI161E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PAI-1801 COUPLED INDUCTORS FOR USE IN ADSL POTS LOW PASS FILTER Micro Electronics
PAI-1802 COUPLED INDUCTORS FOR USE IN ADSL POTS LOW PASS FILTER Micro Electronics

Other Datasheets by 2Pai Semi

Part Number Description
PAI160E 200Mbps Hexa-Channel Digital Isolators
PAI162E 200Mbps Hexa-Channel Digital Isolators
PAI163E 200Mbps Hexa-Channel Digital Isolators

Full PDF Text Transcription

Click to expand full text

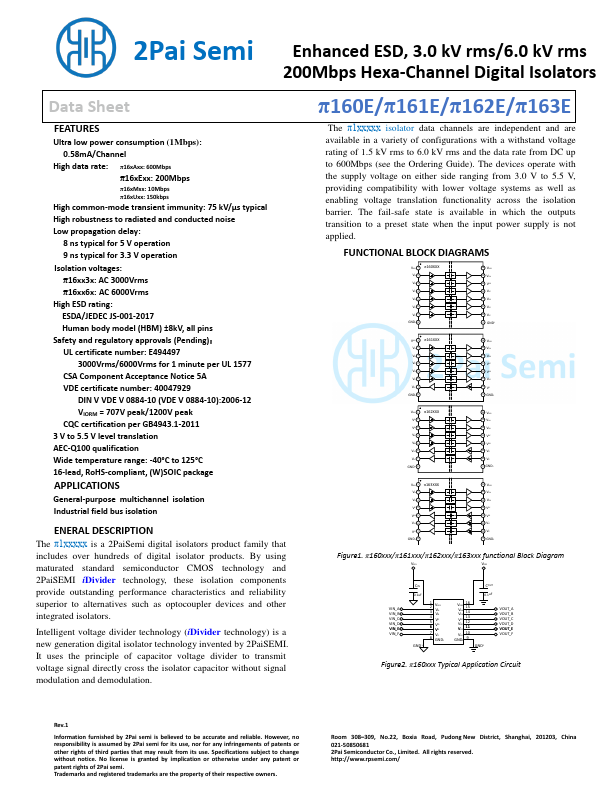

2Pai Semi Enhanced ESD, 3.0 kV rms/6.0 kV rms 200Mbps Hexa-Channel Digital Isolators Data Sheet FEATURES Ultra low power consumption (1Mbps): 0.58mA/Channel High data rate: π16xAxx: 600Mbps π16xExx: 200Mbps π16xMxx: 10Mbps π16xUxx: 150kbps High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise Low propagation delay: 8 ns typical for 5 V operation 9 ns typical for 3.
