PAI162E Datasheet 200Mbps Hexa-Channel Digital Isolators

Manufacturer: 2Pai Semi

Download the PAI162E datasheet PDF. This datasheet also includes the PAI160E variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PAI160E-2PaiSemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PAI162E
Manufacturer 2Pai Semi
File Size 1.14 MB
Description 200Mbps Hexa-Channel Digital Isolators
Datasheet download datasheet PAI162E Datasheet

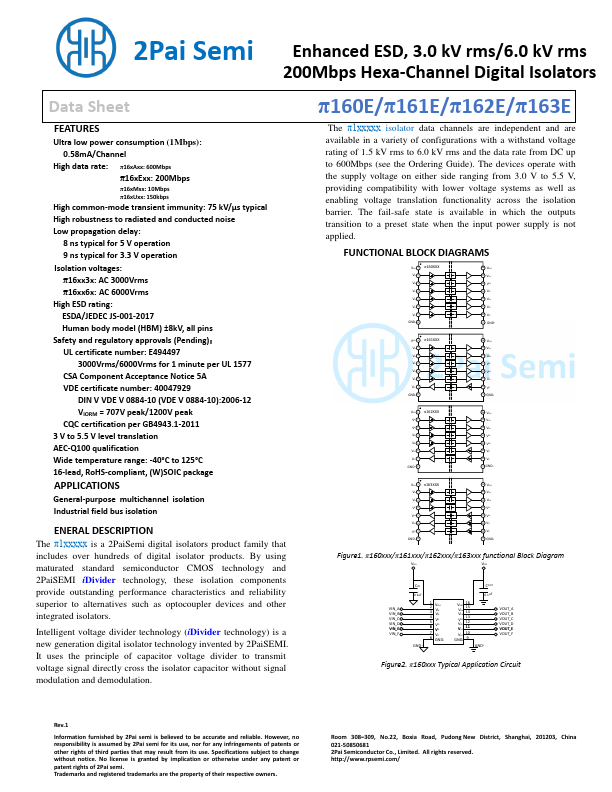

General Description

The π1xxxxx is a 2PaiSemi digital isolators product family that includes over hundreds of digital isolator products.

By using maturated standard semiconductor CMOS technology and 2PaiSEMI iDivider technology, these isolation components provide outstanding performance characteristics and reliability superior to alternatives such as optocoupler devices and other integrated isolators.

Intelligent voltage divider technology (iDivider technology) is a new generation digital isolator technology invented by 2PaiSEMI.

Overview

2Pai Semi Enhanced ESD, 3.0 kV rms/6.0 kV rms 200Mbps Hexa-Channel Digital Isolators Data.

Key Features

  • Ultra low power consumption (1Mbps): 0.58mA/Channel High data rate: π16xAxx: 600Mbps π16xExx: 200Mbps π16xMxx: 10Mbps π16xUxx: 150kbps High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise Low propagation delay: 8 ns typical for 5 V operation 9 ns typical for 3.3 V operation Isolation voltages: π16xx3x: AC 3000Vrms π16xx6x: AC 6000Vrms High ESD rating: ESDA/JEDEC JS-001-2017 Human body model (HBM) ±8kV, all pins Safety and regulatory approvals (Pen.
