LM339A Datasheet 36v Low Power Comparators

Manufacturer: 3PEAK

Overview: LM331A, LM393A, LM339A 36 V Low Power Comparators.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	LM339A
Manufacturer	3PEAK
File Size	791.30 KB
Description	36V Low Power Comparators
Datasheet	LM339A LM331A Datasheet (PDF)

General Description

The devices in this series consist of single/ dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate.

The common mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these comparators suitable for battery operation.

These types were designed to directly interface with TTL and CMOS, Current drain is independent of the supply voltage.

Key Features

Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V.
Very Low Supply Current (150 μA/ch).
Low Input Bias Current: 1 nA maximum.
Low Offset Voltage: ±6.0 mV maximum.
Input Common-mode Voltage Range Includes Ground.
Internal Differential Input Voltage Range Equal to The Supply Voltage.
Low Output Saturation.
40°C to 125°C Operation Range.

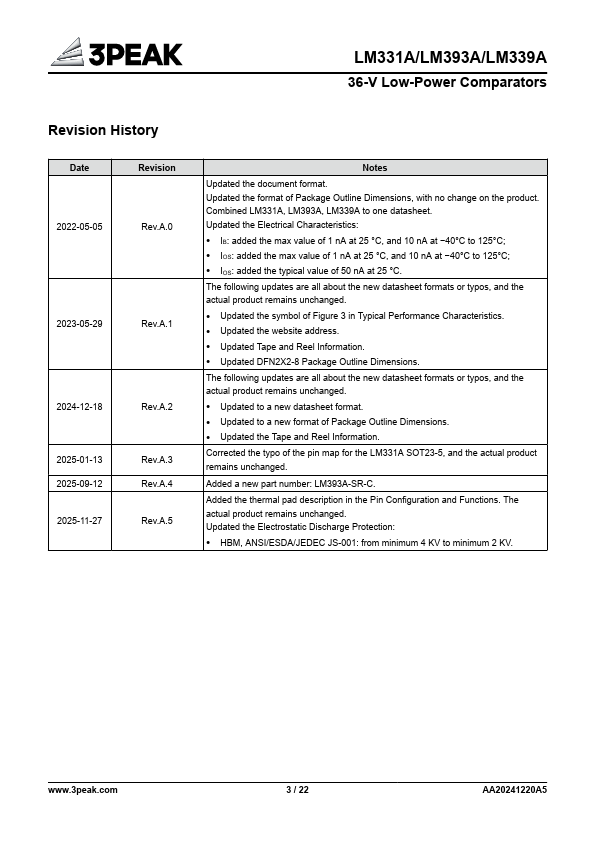

ESD Rating: HBM 4 kV, CDM 2 kV.
