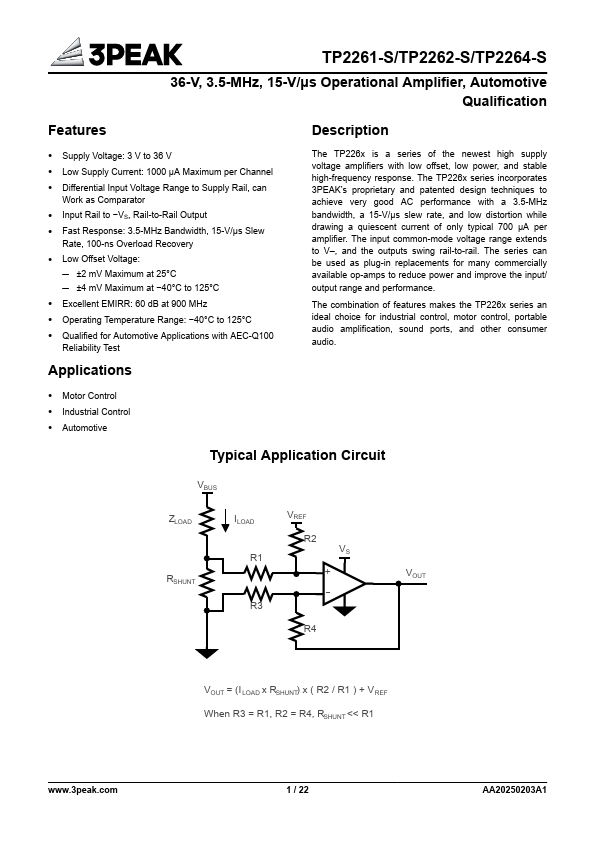

TP2262-S
Overview
Supply Voltage: 3 V to 36 V Low Supply Current: 1000 μA Maximum per Channel Differential Input Voltage Range to Supply Rail, can Work as Comparator Input Rail to -VS, Rail-to-Rail Output Fast Response: 3.5-MHz Bandwidth, 15-V/μs Slew Rate, 100-ns Overload Recovery Low Offset Voltage: - ±2 mV Maximum at 25°C - ±4 mV Maximum at -40°C to 125°C Excellent EMIRR: 60 dB at 900 MHz Operating Temperature Range: -40°C to 125°C Qualified for Automotive Applications with AEC-Q100 Reliability Test.
