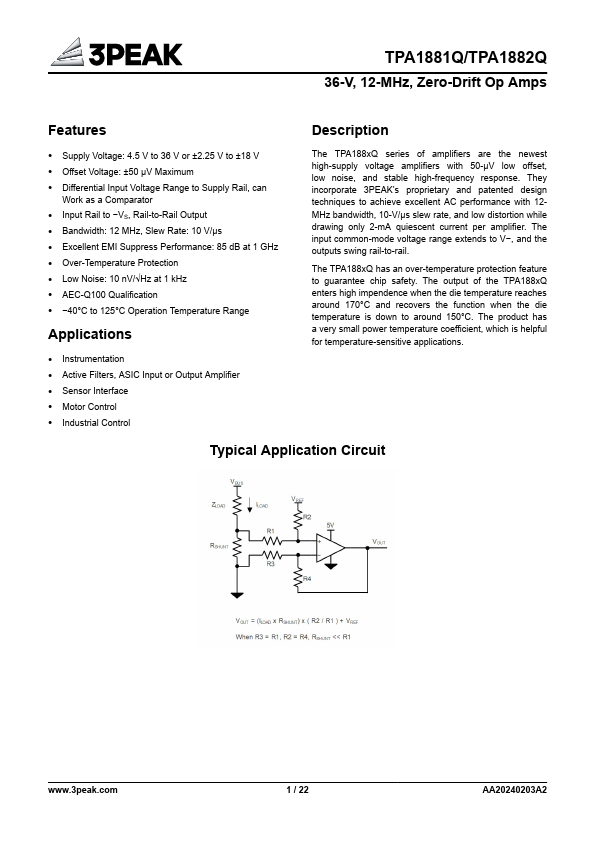

TPA1881Q Description
4.5 V to 36 V or ±2.25 V to ±18 V Offset Voltage: ±50 μV Maximum Differential Input Voltage Range to Supply Rail, can Work as a parator Input Rail to −VS, Rail-to-Rail Output Bandwidth: 10 V/μs Excellent EMI Suppress Performance:.
TPA1881Q Key Features
- Supply Voltage: 4.5 V to 36 V or ±2.25 V to ±18 V
- Offset Voltage: ±50 μV Maximum
- Differential Input Voltage Range to Supply Rail, can
- Input Rail to -VS, Rail-to-Rail Output
- Bandwidth: 12 MHz, Slew Rate: 10 V/μs
- Excellent EMI Suppress Performance: 85 dB at 1 GHz
- Over-Temperature Protection
- Low Noise: 10 nV/√Hz at 1 kHz
- AEC-Q100 Qualification
- 40°C to 125°C Operation Temperature Range
