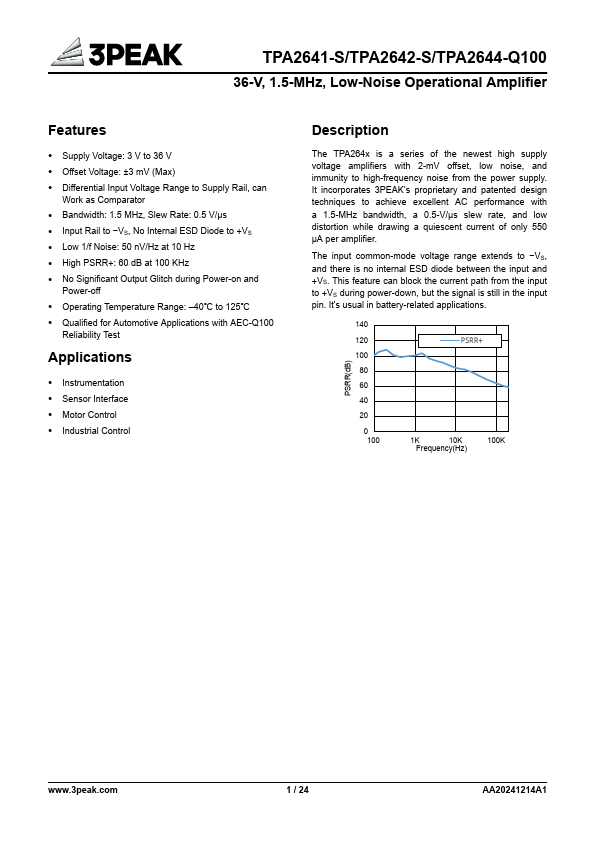

TPA2642-S datasheet preview

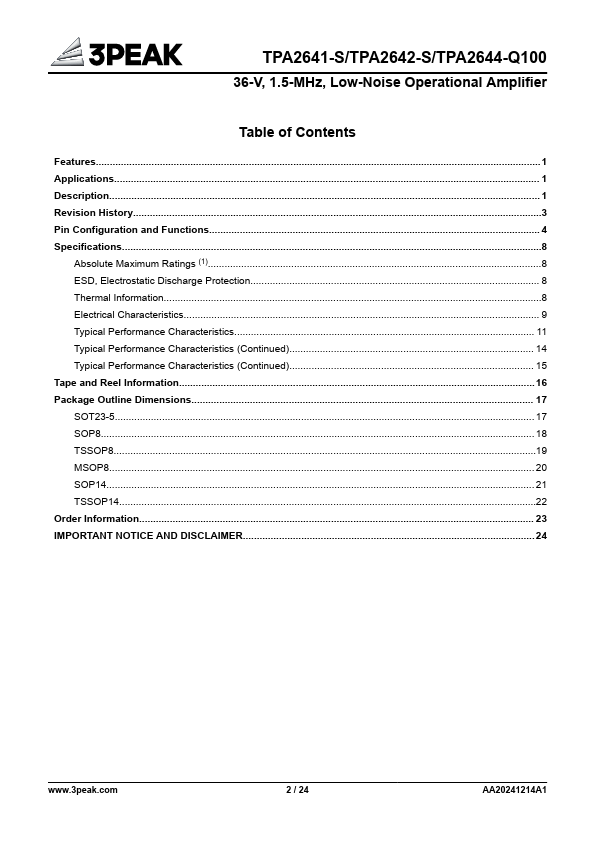

TPA2642-S page 2
Page 2

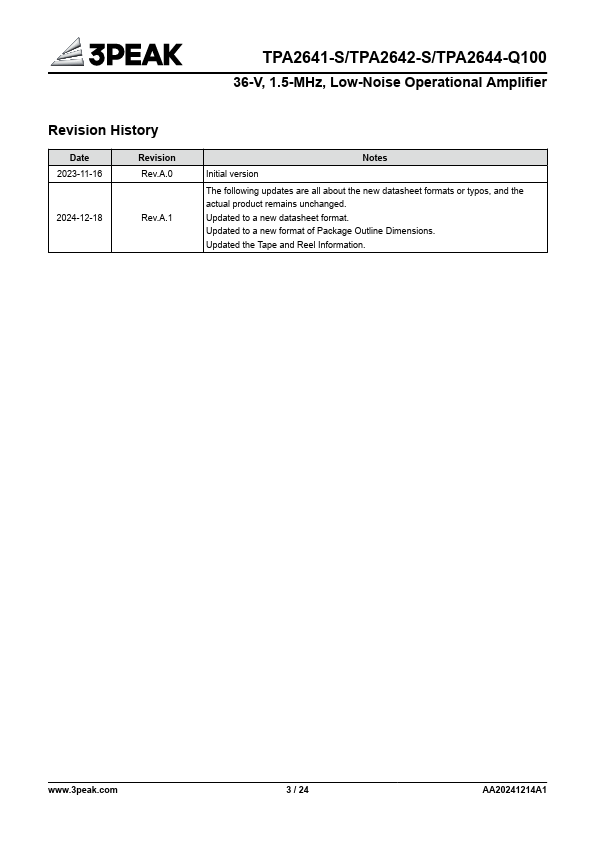

TPA2642-S page 3
Page 3

TPA2642-S Key Features

  • Supply Voltage: 3 V to 36 V
  • Offset Voltage: ±3 mV (Max)
  • Differential Input Voltage Range to Supply Rail, can
  • Bandwidth: 1.5 MHz, Slew Rate: 0.5 V/μs
  • Input Rail to -VS, No Internal ESD Diode to +VS
  • Low 1/f Noise: 50 nV/Hz at 10 Hz
  • High PSRR+: 60 dB at 100 KHz
  • No Significant Output Glitch during Power-on and
  • Operating Temperature Range: -40℃ to 125℃
  • Qualified for Automotive

Related 3PEAK Datasheets

Part Number Description
TPA2642 36V 1.5MHz Low Noise Op Amps
TPA2641 36V 1.5MHz Low Noise Op Amps
TPA2641-S Low-Noise Operational Amplifier
TPA2644 36V 1.5MHz Low Noise Op Amps
TPA2644-Q100 Low-Noise Operational Amplifier

TPA2642-S Description

The TPA264x is a series of the newest high supply voltage amplifiers with 2-mV offset, low noise, and immunity to high-frequency noise from the power supply. It incorporates 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with a 1.5-MHz bandwidth, a 0.5-V/μs slew rate, and low distortion while drawing a quiescent current of only 550 μA per amplifier. The input mon-mode voltage...
