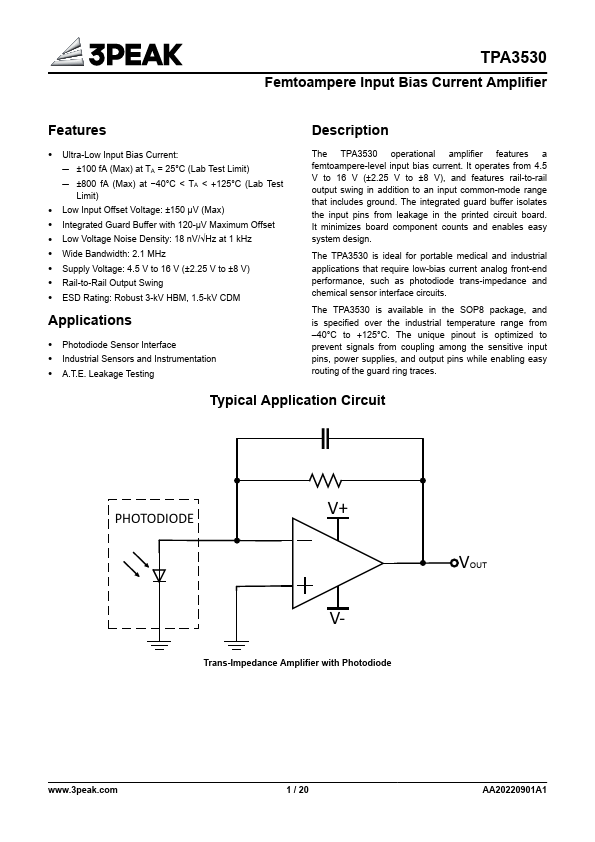

TPA3530 Datasheet (3PEAK)

Description

Ultra-Low Input Bias Current: – ±100 fA (Max) at TA = 25°C (Lab Test Limit) – ±800 fA (Max) at -40°C < TA < +125°C (Lab Test Limit) - Low Input Offset Voltage: ±150 µV (Max) - Integrated Guard Buffer with 120-µV Maximum Offset - Low Voltage Noise Density: 18 nV/√Hz at 1 kHz - Wide Bandwidth: 2.1 MHz - Supply Voltage: 4.5 V to 16 V (±2.25 V to ±8 V) - Rail-to-Rail Output Swing - ESD Rating: Robust 3-kV HBM, 1.5-kV CDM.
