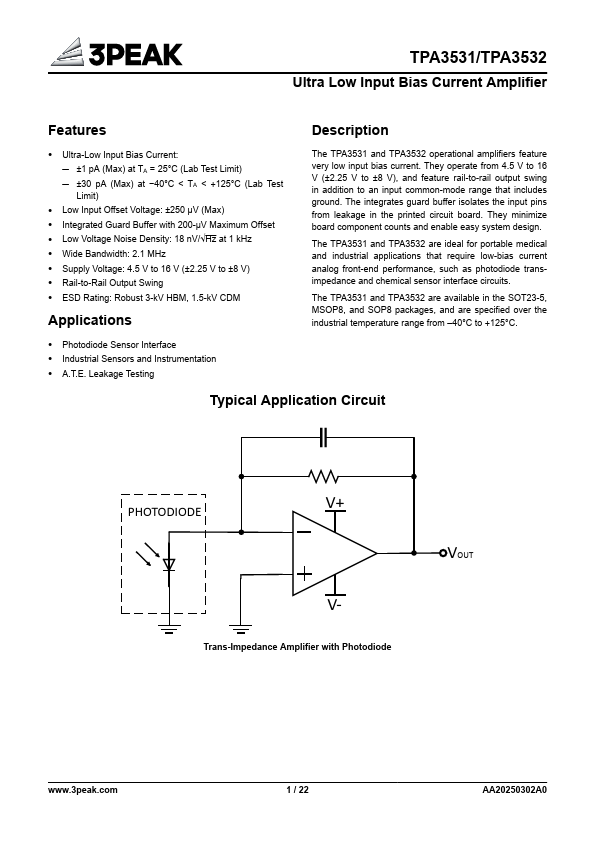

TPA3531 Description
Ultra-Low Input Bias Current: ±1 pA (Max) at TA = 25°C (Lab Test Limit) ±30 pA (Max) at −40°C < TA < +125°C (Lab Test Limit) Low Input Offset Voltage: ±250 µV (Max) Integrated Guard Buffer with 200-µV Maximum Offset Low Voltage Noise Density:.
TPA3531 Key Features
- Ultra-Low Input Bias Current
- ±1 pA (Max) at TA = 25°C (Lab Test Limit)
- ±30 pA (Max) at -40°C < TA < +125°C (Lab Test
- Low Input Offset Voltage: ±250 µV (Max)
- Integrated Guard Buffer with 200-µV Maximum Offset
- Low Voltage Noise Density: 18 nV/√Hz at 1 kHz
- Wide Bandwidth: 2.1 MHz
- Supply Voltage: 4.5 V to 16 V (±2.25 V to ±8 V)
- Rail-to-Rail Output Swing
- ESD Rating: Robust 3-kV HBM, 1.5-kV CDM
