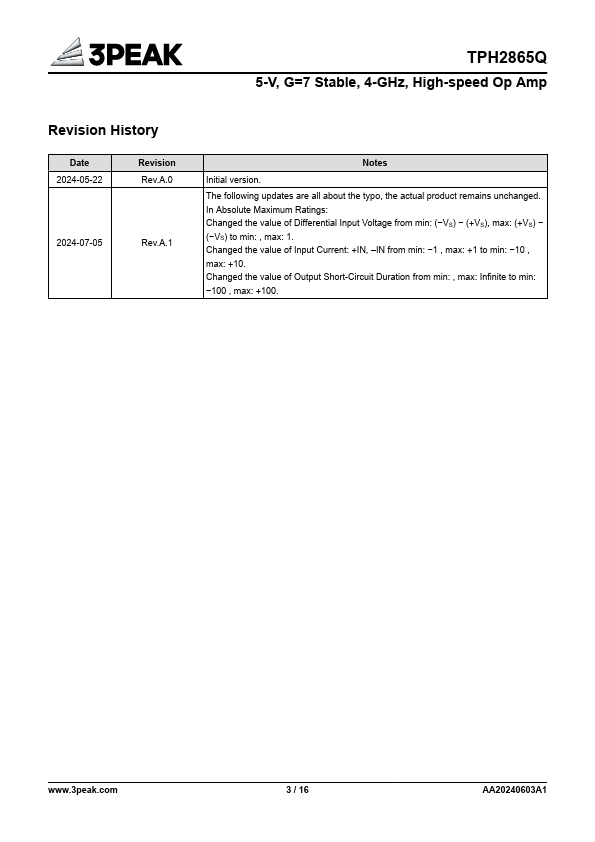

TPH2865Q
TPH2865Q is High-speed Op Amp manufactured by 3PEAK.
Features
Description
- Supply Voltage: 3.3 V to 5.25 V
- High Gain Bandwidth Product: 4 GHz
- High Slew Rate: 1000 V/μs
- Low input voltage Noise: 1.25 n V /√Hz
- Offset Voltage: ±1.8 m V Maximum at 25 °C
- Stable when Gain > 7 V/V
- Quiescent Current: 9.8 m A
- Overload Recovery: 4.8 ns
- Package: DFN2X2-8
- - 40°C to 125°C Operation Temperature Range
- AEC-Q100 Qualified for Automotive Applications,
Grade 1:
- 40C to +125°C Ta
Applications
TPH2865Q is a high-speed, low noise operational amplifier with high-speed BJT inputs, suitable for high-speed applications.
The TPH2865Q has a gain-bandwidth product of 4 GHz, a slew rate of 1000 V/µs and only 4.8 ns is need for overload recovery, making it suitable for high-speed pulse applications.
The feedback pin (FB) of TPH2865Q decreases the distance of the feedback network connection between the input and output on the PCB, which benefits the achievement of high closed-loop bandwidth.
The DFN2X2-8 package with a wettable flank is provided for TPH2865Q, making the solder yield easy to check during the SMT.
- Automotive Lidar
- Lab Equipment
- Automated Test Equipment
- OTDR
- Laser Distance Meter

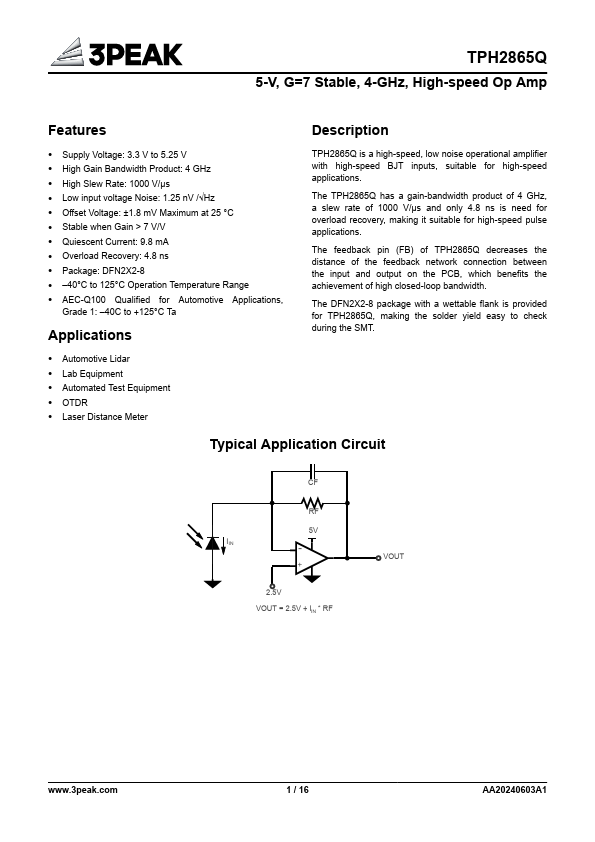

Typical Application Circuit
5V
- +
2.5V VOUT = 2.5V + IIN
- RF
VOUT
.3peak.
1 / 16
AA20240603A1
5-V, G=7 Stable, 4-GHz, High-speed Op Amp
