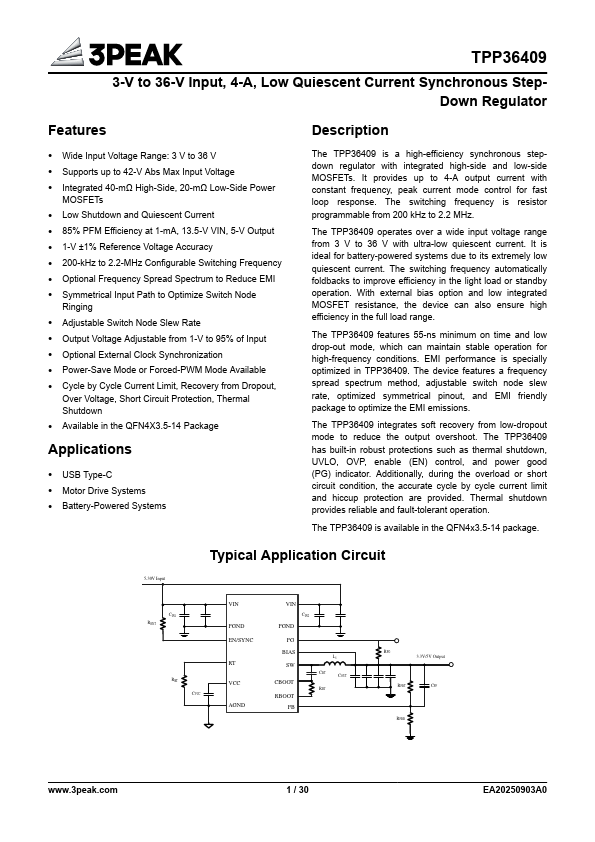

TPP36409 Datasheet | 3PEAK

Features Description - Wide Input Voltage Range: 3 V to 36 V - Supports up to 42-V Abs Max Input Voltage - Integrated 40-mΩ High-Side, 20-mΩ Low-Side Power MOSFETs - Low Shutdown and Quiescent Current - 85% PFM Efficiency at 1-m A, 13.5-V VIN, 5-V Output - 1-V ±1% Reference Voltage Accuracy - 200-k Hz to 2.2-MHz Configurable Switching Frequency - Optional Frequency Spread Spectrum to Reduce EMI - Symmetrical Input Path to Optimize Switch Node Ringing - Adjustable Switch Node Slew Rate - Output Voltage Adjustable from 1-V to 95% of Input - Optional External Clock Synchronization - Power-Save Mode or Forced-PWM Mode Available - Cycle by Cycle Current Limit, Recovery from Dropout, Over Voltage, Short Circuit Protection, Thermal Shutdown - Available in the QFN4X3.5-14 Package Applications - USB Type-C - Motor Drive Systems - Battery-Powered Systems The TPP36409 is a high-efficiency synchronous stepdown regulator with integrated high-side and low-side MOSFETs. It provides up to 4-A output current with constant frequency, peak current mode control for fast loop response. The switching frequency is resistor programmable from 200 k Hz to 2.2 MHz. The TPP36409 operates over a wide input voltage range from 3 V to 36 V with ultra-low quiescent current. It is ideal for battery-powered systems due to its extremely low quiescent current. The switching frequency automatically foldbacks to improve efficiency in the light load or standby operation. With external bias option and low integrated MOSFET resistance, the device can also ensure high efficiency in the full load range. The TPP36409 features 55-ns minimum on time and low drop-out mode, which can maintain stable operation for high-frequency conditions. EMI performance is specially optimized in TPP36409. The device features a frequency spread spectrum method, adjustable switch node slew rate, optimized symmetrical pinout, and EMI friendly package to optimize the EMI emissions. The TPP36409 integrates soft recovery from...
