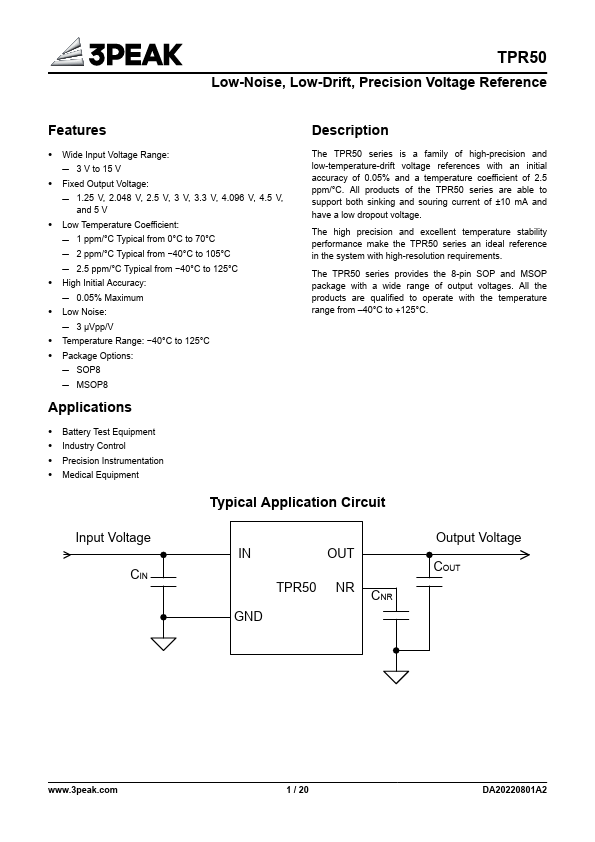

TPR50
Low-Noise, Low-Drift, Precision Voltage Reference
Features
Description
• Wide Input Voltage Range: – 3 V to 15 V
• Fixed Output Voltage: – 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, 4.5 V,
and 5 V
• Low Temperature Coefficient: – 1 ppm/°C Typical from 0°C to 70°C – 2 ppm/°C Typical from −40°C to 105°C – 2.5 ppm/°C Typical from −40°C to 125°C
• High Initial Accuracy: – 0.05% Maximum
• Low Noise: – 3 μVpp/V
• Temperature Range: −40°C to 125°C • Package Options:
– SOP8 – MSOP8
Applications
The TPR50 seires is a family of high-precision and low-temperature-drift voltage references with the initial accuracy of 0.05% and the temperature coefficient of 2.5 ppm/°C.
