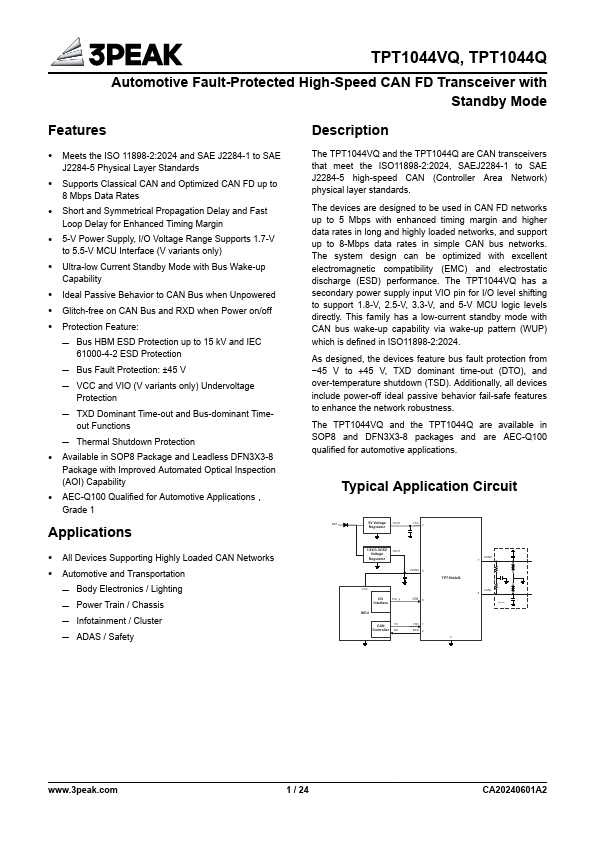

TPT1044VQ Description
The TPT1044VQ and the TPT1044Q are CAN transceivers that meet the ISO11898-2:2024, SAEJ2284-1 to SAE J2284-5 high-speed CAN (Controller Area Network) physical layer standards. The devices are designed to be used in CAN FD networks up to 5 Mbps with enhanced timing margin and higher data rates in long and highly loaded networks, and support up to 8-Mbps data rates in simple CAN bus networks. The system design can be...
TPT1044VQ Key Features
- Meets the ISO 11898-2:2024 and SAE J2284-1 to SAE
- Short and Symmetrical Propagation Delay and Fast
- 5-V Power Supply, I/O Voltage Range Supports 1.7-V
- Ultra-low Current Standby Mode with Bus Wake-up
- Ideal Passive Behavior to CAN Bus when Unpowered
- Glitch-free on CAN Bus and RXD when Power on/off
- Protection Feature
- Bus HBM ESD Protection up to 15 kV and IEC
- Bus Fault Protection: ±45 V
- VCC and VIO (V variants only) Undervoltage
