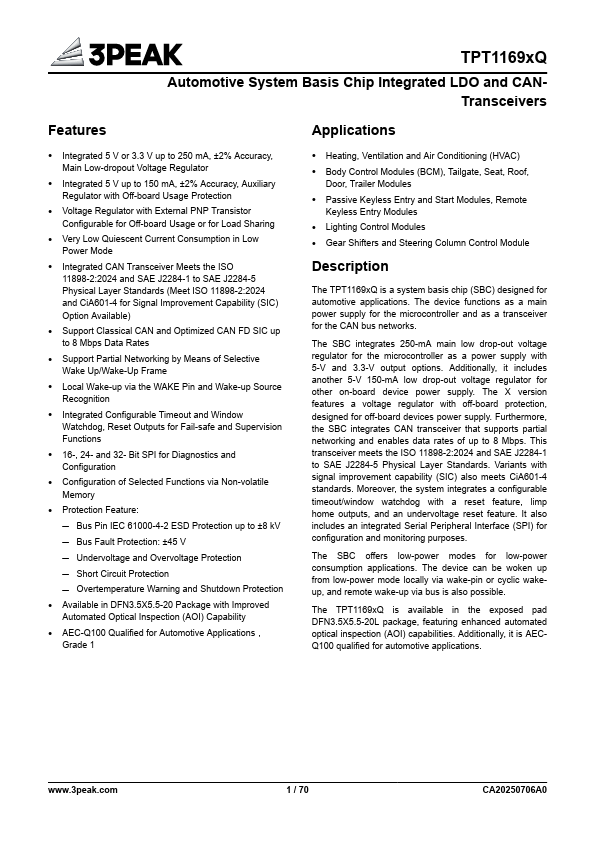

TPT11693FQ Datasheet | 3PEAK

Features - Integrated 5 V or 3.3 V up to 250 m A, ±2% Accuracy, Main Low-dropout Voltage Regulator - Integrated 5 V up to 150 m A, ±2% Accuracy, Auxiliary Regulator with Off-board Usage Protection - Voltage Regulator with External PNP Transistor Configurable for Off-board Usage or for Load Sharing - Very Low Quiescent Current Consumption in Low Power Mode - Integrated CAN Transceiver Meets the ISO 11898-2:2024 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards (Meet ISO 11898-2:2024 and Ci A601-4 for Signal Improvement Capability (SIC) Option Available) - Support Classical CAN and Optimized CAN FD SIC up to 8 Mbps Data Rates - Support Partial Networking by Means of Selective Wake Up/Wake-Up Frame - Local Wake-up via the WAKE Pin and Wake-up Source Recognition - Integrated Configurable Timeout and Window Watchdog, Reset Outputs for Fail-safe and Supervision Functions - 16-, 24- and 32- Bit SPI for Diagnostics and Configuration - Configuration of Selected Functions via Non-volatile Memory - Protection Feature : - Bus Pin IEC 61000-4-2 ESD Protection up to ±8 k V - Bus Fault Protection: ±45 V - Undervoltage and Overvoltage Protection - Short Circuit Protection - Overtemperature Warning and Shutdown Protection - Available in DFN3.5X5.5-20 Package with Improved Automated Optical Inspection (AOI) Capability - AEC-Q100 Qualified for Automotive Applications， Grade 1 Applications - Heating, Ventilation and Air Conditioning (HVAC) - Body Control Modules (BCM), Tailgate, Seat, Roof, Door, Trailer Modules - Passive Keyless Entry and Start Modules, Remote Keyless Entry Modules - Lighting Control...
