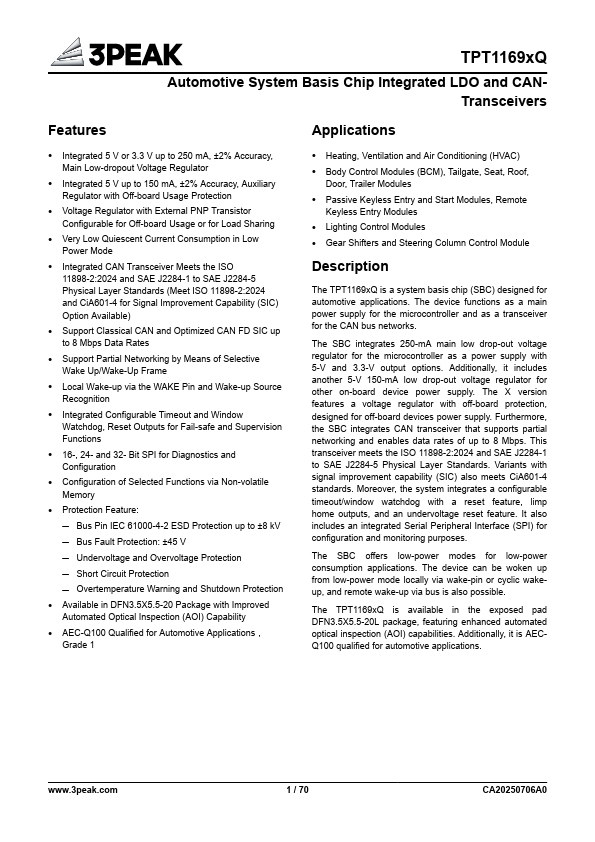

TPT11695XQ Overview
The TPT1169xQ is a system basis chip (SBC) designed for automotive applications. The device functions as a main power supply for the microcontroller and as a transceiver for the CAN bus networks. The SBC integrates 250-mA main low drop-out voltage regulator for the microcontroller as a power supply with 5-V and 3.3-V output options.
TPT11695XQ Key Features
- Integrated 5 V or 3.3 V up to 250 mA, ±2% Accuracy
- Integrated 5 V up to 150 mA, ±2% Accuracy, Auxiliary
- Voltage Regulator with External PNP Transistor
- Very Low Quiescent Current Consumption in Low
- Integrated CAN Transceiver Meets the ISO
- Support Classical CAN and Optimized CAN FD SIC up
- Support Partial Networking by Means of Selective
- Local Wake-up via the WAKE Pin and Wake-up Source
- Integrated Configurable Timeout and Window
- 16-, 24- and 32- Bit SPI for Diagnostics and
