TPT480 - Full Duplex RS-485 Transceivers

Description

The TPT480 and TPT482 is IEC61000 ESD protected, which support ±12 kV IEC contact and ±15 kV IEC air discharge.

3.0V ~ 5.5V transceivers that meet the RS-485 and RS-422 standards for Full Duplex communication.

Features

  • Exceeds Requirements of Full Duplex EIA-485 Standard.
  • Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down.
  • Supply voltage: 3.0V ~ 5.5V.
  • Input Common-mode Range: -7V ~ +12 V.
  • Data Rate: 32Mbps.
  • Up to 256 Nodes on a Bus (1/8 unit load).
  • Full Fail-safe Receiver (Open, Short, Terminated).
  • Bus-Pin Protection: ±20 kV HBM ESD ±12 kV IEC61000-4-2 Contact Discharge ±15 kV IEC61000-4-2 Air Discharge.
  • 40°C to 125°C Opera.

📥 Download Datasheet

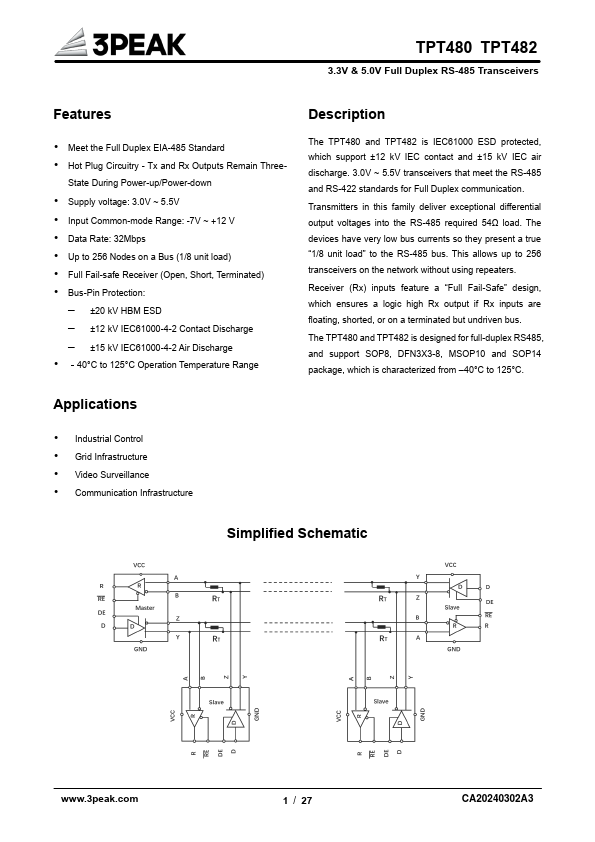

Datasheet preview – TPT480

Datasheet Details

Part number TPT480
Manufacturer 3PEAK
File Size 1.45 MB
Description Full Duplex RS-485 Transceivers
Datasheet download datasheet TPT480 Datasheet

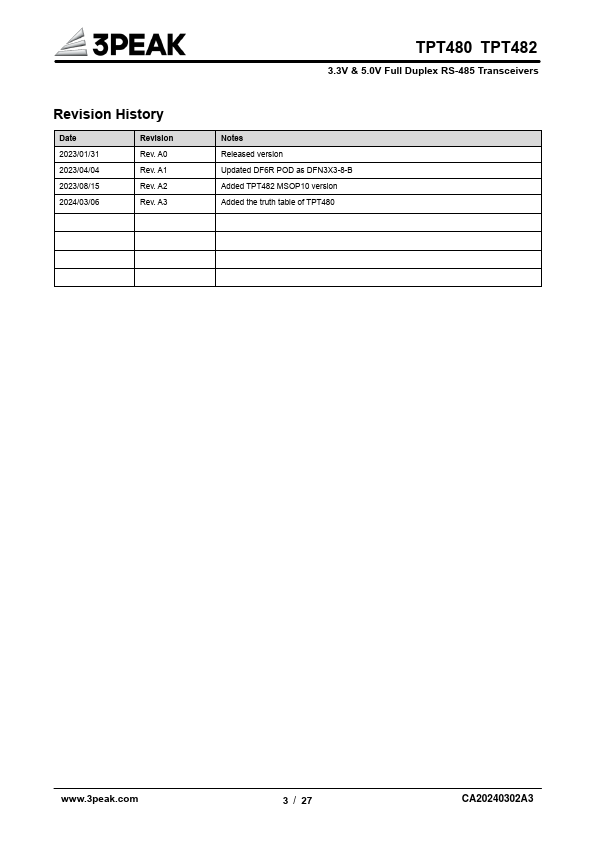

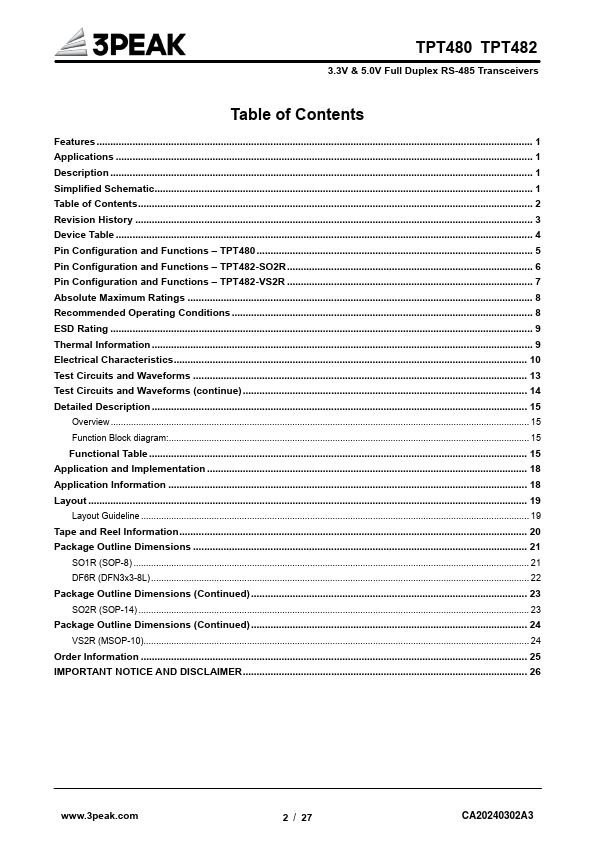

Additional preview pages of the TPT480 datasheet.

📁 Similar Datasheet

  • TPT0472S - 3W 1.5KVDC Isolated Triple Output DC/DC Converters (TOPPOWER)
  • TPT0572S - 3W 1.5KVDC Isolated Triple Output DC/DC Converters (TOPPOWER)
  • TPT1272S - 3W 1.5KVDC Isolated Triple Output DC/DC Converters (TOPPOWER)
  • TPT5609 - NPN Transistor (WEJ)
  • TPT5609 - NPN SILICON TRANSISTOR (TP)
  • TPT5609 - NPN Epitaxial Silicon Transistor (MCC)
  • TPT5610 - PNP Transistor (JCET)
  • TPTA0303 - 1W 1.5KVDC Isolated Dual Output SMD DC/DC Converters (TOPPOWER)
  • TPTA0303A - 1W 1.5KVDC Isolated Single Output SMD DC/DC Converters (TOPPOWER)
  • TPTA0305 - 1W 1.5KVDC Isolated Dual Output SMD DC/DC Converters (TOPPOWER)
Other Datasheets by 3PEAK
  • TPT481 - 3.0V to 5.5V RS-485 Transceivers
  • TPT482 - Full Duplex RS-485 Transceivers
  • TPT485E - RS-485 Transceiver
  • TPT485N - Bus-Polarity Correcting RS-485 Transceiver
  • TPT486 - Full Duplex RS-485 Transceivers
  • TPT487 - 3.0V to 5.5V RS-485 Transceivers
  • TPT488 - Full Duplex RS-485 Transceivers
  • TPT4031 - High Speed Quad Differential RS422 Driver

Full PDF Text Transcription

Click to expand full text
Features ⚫ Exceeds Requirements of Full Duplex EIA-485 Standard ⚫ Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down ⚫ Supply voltage: 3.0V ~ 5.5V ⚫ Input Common-mode Range: -7V ~ +12 V ⚫ Data Rate: 32Mbps ⚫ Up to 256 Nodes on a Bus (1/8 unit load) ⚫ Full Fail-safe Receiver (Open, Short, Terminated) ⚫ Bus-Pin Protection: ±20 kV HBM ESD ±12 kV IEC61000-4-2 Contact Discharge ±15 kV IEC61000-4-2 Air Discharge ⚫ –40°C to 125°C Operation Temperature Range TPT480 TPT482 3.3V & 5.0V Full Duplex RS-485 Transceivers Description The TPT480 and TPT482 is IEC61000 ESD protected, which support ±12 kV IEC contact and ±15 kV IEC air discharge. 3.0V ~ 5.5V transceivers that meet the RS-485 and RS-422 standards for Full Duplex communication.
