TPV706 Datasheet | 3PEAK

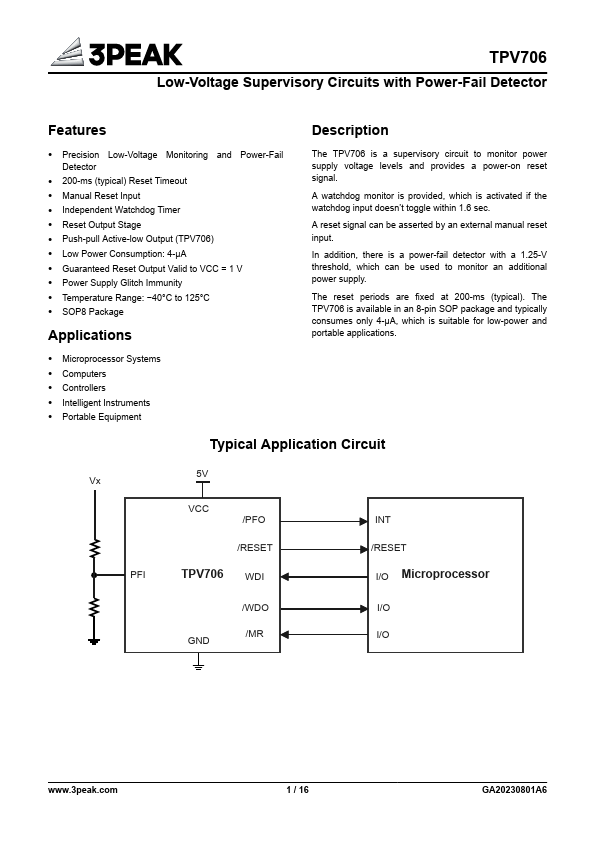

Features Description - Precision Low-Voltage Monitoring and Power-Fail Detector - 200-ms (typical) Reset Timeout - Manual Reset Input - Independent Watchdog Timer - Reset Output Stage - Push-pull Active-low Output (TPV706) - Low Power Consumption: 4-μA - Guaranteed Reset Output Valid to VCC = 1 V - Power Supply Glitch Immunity - Temperature Range: - 40°C to 125°C - SOP8 Package Applications The TPV706 is a supervisory circuit to monitor power supply voltage levels and provides a power-on reset signal. A watchdog monitor is provided, which is activated if the watchdog input doesn’t toggle within 1.6 sec. A reset signal can be asserted by an external manual reset input. In addition, there is a power-fail detector with a 1.25-V threshold, which can be used to monitor an additional power supply. The reset periods are fixed at 200-ms (typical). The TPV706 is available in an 8-pin SOP package and typically consumes only 4-μA, which is suitable for low-power and portable applications. - Microprocessor Systems - puters - Controllers - Intelligent Instruments - Portable Equipment Typical Application Circuit Vx 5V /PFO /RESET TPV706 WDI /RESET I/O Microprocessor /WDO I/O...
