S-5712A - HALL-EFFECT SWITCH-IC

Key Features

  • Pole detection.
  • 1:.
  • Output logic.
  • 1:.
  • Output form.
  • 1:.
  • Magnetic sensitivity.
  • 1:.
  • Operating cycle (current consumption).
  • 1:.
  • Power supply voltage range:.
  • Operation temperature range:.
  • Lead-free (Sn 100%), halogen-free Detection of omnipolar, S pole or N pole Active "L", active "H" Nch open-drain output, CMOS output BOP = 1.8 mT typ. BOP = 3.0 mT typ. BOP = 4.5 mT typ. BOP = 7.0 mT typ. Product with omnipolar.

📥 Download Datasheet

Datasheet Details

Part number S-5712A
Manufacturer ABLIC
File Size 766.16 KB
Description HALL-EFFECT SWITCH-IC
Datasheet download datasheet S-5712A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S-5711A HALL-IC Seiko Instruments
S-5713A HALL-IC Seiko
S-5715 HALL-IC Seiko
S-5721A HALL-IC Seiko Instruments
S-5722A HALL-IC Seiko Instruments

Other Datasheets by ABLIC

Part Number Description
S-5712B HALL-EFFECT SWITCH-IC
S-5712C HALL-EFFECT SWITCH-IC
S-5712E HALL-EFFECT SWITCH-IC
S-5715 HALL-IC
S-5716 HALL EFFECT SWITCH IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

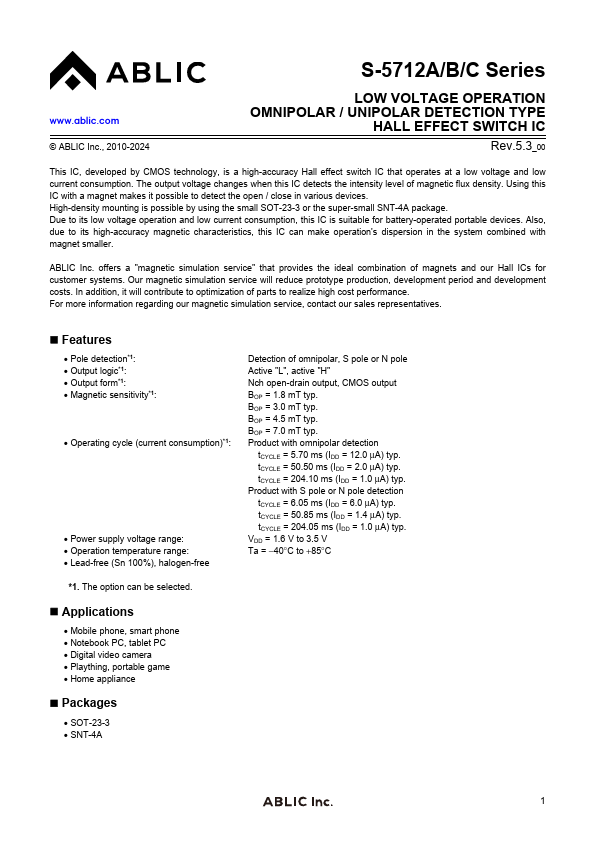

S-5712A/B/C Series www.ablic.com © ABLIC Inc., 2010-2024 LOW VOLTAGE OPERATION OMNIPOLAR / UNIPOLAR DETECTION TYPE HALL EFFECT SWITCH IC Rev.5.3_00 This IC, developed by CMOS technology, is a high-accuracy Hall effect switch IC that operates at a low voltage and low current consumption. The output voltage changes when this IC detects the intensity level of magnetic flux density. Using this IC with a magnet makes it possible to detect the open / close in various devices. High-density mounting is possible by using the small SOT-23-3 or the super-small SNT-4A package. Due to its low voltage operation and low current consumption, this IC is suitable for battery-operated portable devices.
