S-5712C
S-5712C is HALL-EFFECT SWITCH-IC manufactured by ABLIC.
- Part of the S-5712A comparator family.
- Part of the S-5712A comparator family.

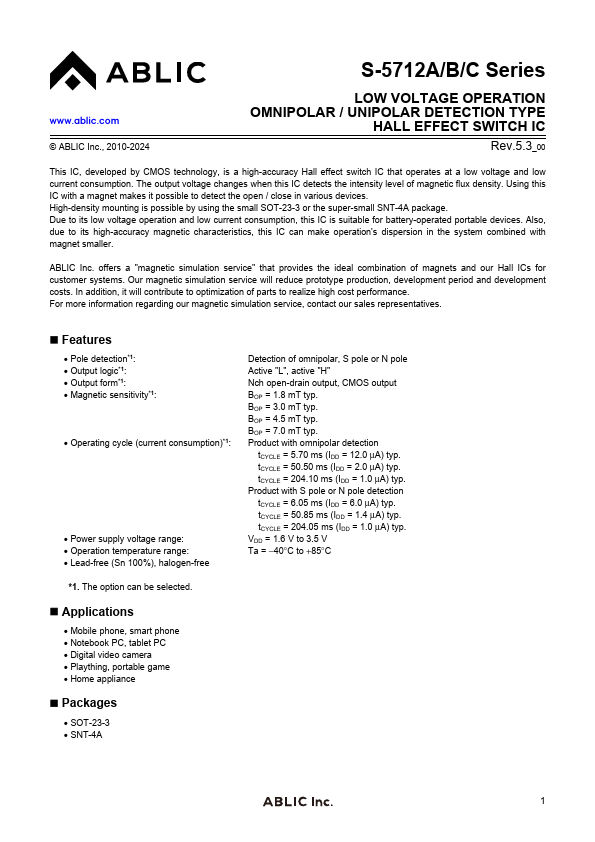

S-5712A/B/C Series
.ablic. © ABLIC Inc., 2010-2024
LOW VOLTAGE OPERATION OMNIPOLAR / UNIPOLAR DETECTION TYPE
HALL EFFECT SWITCH IC
Rev.5.3_00
This IC, developed by CMOS technology, is a high-accuracy Hall effect switch IC that operates at a low voltage and low current consumption. The output voltage changes when this IC detects the intensity level of magnetic flux density. Using this IC with a magnet makes it possible to detect the open / close in various devices. High-density mounting is possible by using the small SOT-23-3 or the super-small SNT-4A package. Due to its low voltage operation and low current consumption, this IC is suitable for battery-operated portable devices....
