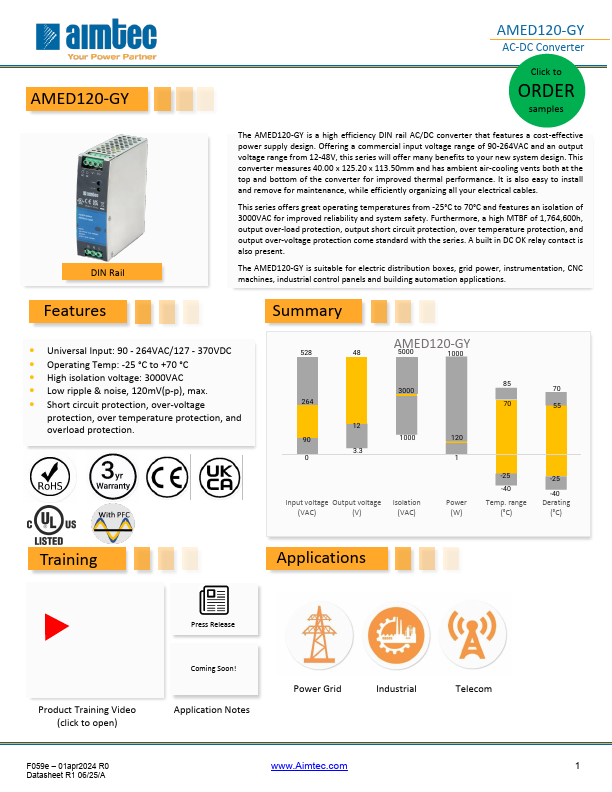

Datasheet Summary
DIN Rail
AC-DC Converter
Click to
ORDER samples
The AMED120-GY is a high efficiency DIN rail AC/DC converter that Features a cost-effective power supply design. Offering a mercial input voltage range of 90-264VAC and an output voltage range from 12-48V, this series will offer many benefits to your new system design. This converter measures 40.00 x 125.20 x 113.50mm and has ambient air-cooling vents both at the top and bottom of the converter for improved thermal performance. It is also easy to install and remove for maintenance, while efficiently organizing all your electrical cables.
This series offers great operating temperatures from -25°C to 70°C and Features...
