Datasheet Summary
AC-DC Converter
Click to
ORDER samples
DIN Rail

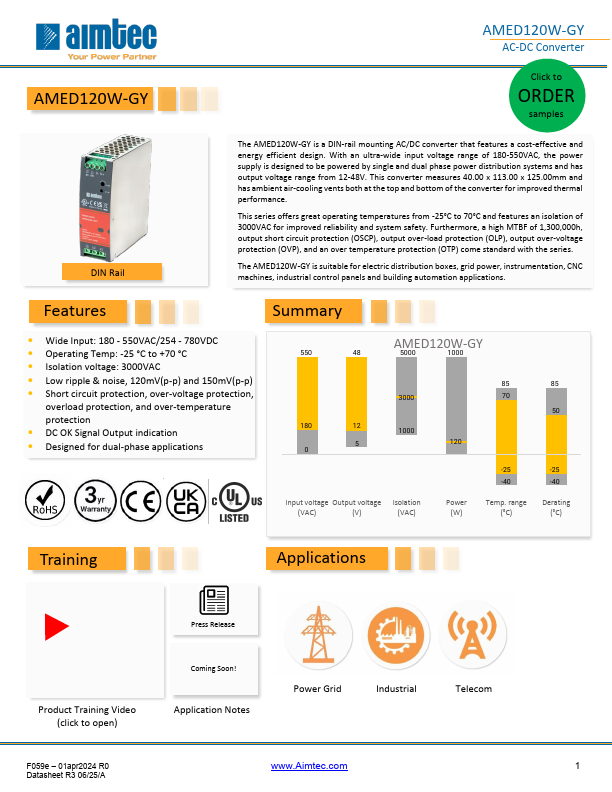

The AMED120W-GY is a DIN-rail mounting AC/DC converter that Features a cost-effective and energy efficient design. With an ultra-wide input voltage range of 180-550VAC, the power supply is designed to be powered by single and dual phase power distribution systems and has output voltage range from 12-48V. This converter measures 40.00 x 113.00 x 125.00mm and has ambient air-cooling vents both at the top and bottom of the converter for improved thermal performance.
This series offers great operating temperatures from -25°C to 70°C and Features an isolation of 3000VAC for improved reliability and system safety....
